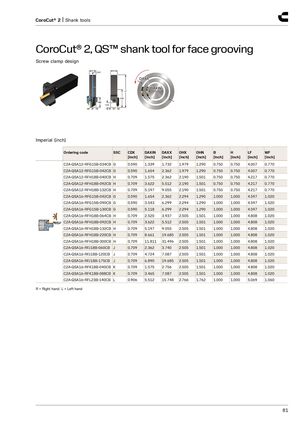

CoroCut® 2, QS™ shank tool for face grooving
Screw clamp design
H B CNT
LF
OHX HBL CDX HF WF
Imperial (inch)
| Ordering code | SSC | CDX [inch] | DAXIN [inch] | DAXX [inch] | OHX [inch] | OHN [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] |
| C2A-QSA12-RFG15B-034CB | G | 0.590 | 1.339 | 1.732 | 1.979 | 1.290 | 0.750 | 0.750 | 4.007 | 0.770 |
| C2A-QSA12-RFG15B-042CB | G | 0.590 | 1.654 | 2.362 | 1.979 | 1.290 | 0.750 | 0.750 | 4.007 | 0.770 |
| C2A-QSA12-RFH18B-040CB | H | 0.709 | 1.575 | 2.362 | 2.190 | 1.501 | 0.750 | 0.750 | 4.217 | 0.770 |
| C2A-QSA12-RFH18B-092CB | H | 0.709 | 3.622 | 5.512 | 2.190 | 1.501 | 0.750 | 0.750 | 4.217 | 0.770 |
| C2A-QSA12-RFH18B-132CB | H | 0.709 | 5.197 | 9.055 | 2.190 | 1.501 | 0.750 | 0.750 | 4.217 | 0.770 |
| C2A-QSA16-RFG15B-042CB | G | 0.590 | 1.654 | 2.362 | 2.294 | 1.290 | 1.000 | 1.000 | 4.597 | 1.020 |
| C2A-QSA16-RFG15B-090CB | G | 0.590 | 3.543 | 6.299 | 2.294 | 1.290 | 1.000 | 1.000 | 4.597 | 1.020 |
| C2A-QSA16-RFG15B-130CB | G | 0.590 | 5.118 | 6.299 | 2.294 | 1.290 | 1.000 | 1.000 | 4.597 | 1.020 |
| C2A-QSA16-RFH18B-064CB | H | 0.709 | 2.520 | 3.937 | 2.505 | 1.501 | 1.000 | 1.000 | 4.808 | 1.020 |
| C2A-QSA16-RFH18B-092CB | H | 0.709 | 3.622 | 5.512 | 2.505 | 1.501 | 1.000 | 1.000 | 4.808 | 1.020 |
| C2A-QSA16-RFH18B-132CB | H | 0.709 | 5.197 | 9.055 | 2.505 | 1.501 | 1.000 | 1.000 | 4.808 | 1.020 |
| C2A-QSA16-RFH18B-220CB | H | 0.709 | 8.661 | 19.685 | 2.505 | 1.501 | 1.000 | 1.000 | 4.808 | 1.020 |
| C2A-QSA16-RFH18B-300CB | H | 0.709 | 11.811 | 31.496 | 2.505 | 1.501 | 1.000 | 1.000 | 4.808 | 1.020 |
| C2A-QSA16-RFJ18B-060CB | J | 0.709 | 2.362 | 3.740 | 2.505 | 1.501 | 1.000 | 1.000 | 4.808 | 1.020 |
| C2A-QSA16-RFJ18B-120CB | J | 0.709 | 4.724 | 7.087 | 2.505 | 1.501 | 1.000 | 1.000 | 4.808 | 1.020 |
| C2A-QSA16-RFJ18B-175CB | J | 0.709 | 6.890 | 19.685 | 2.505 | 1.501 | 1.000 | 1.000 | 4.808 | 1.020 |
| C2A-QSA16-RFK18B-040CB | K | 0.709 | 1.575 | 2.756 | 2.505 | 1.501 | 1.000 | 1.000 | 4.808 | 1.020 |
| C2A-QSA16-RFK18B-088CB | K | 0.709 | 3.465 | 7.087 | 2.505 | 1.501 | 1.000 | 1.000 | 4.808 | 1.020 |
| C2A-QSA16-RFL23B-140CB | L | 0.906 | 5.512 | 15.748 | 2.766 | 1.762 | 1.000 | 1.000 | 5.069 | 1.060 |
R = Right hand, L = Left hand
