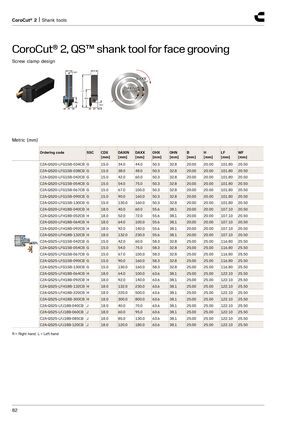

CoroCut® 2, QS™ shank tool for face grooving
Screw clamp design
H B CNT
LF
OHX HBL CDX HF WF
Metric (mm)
| Ordering code | SSC | CDX [mm] | DAXIN [mm] | DAXX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] |
| C2A-QS20-LFG15B-034CB | G | 15.0 | 34.0 | 44.0 | 50.3 | 32.8 | 20.00 | 20.00 | 101.80 | 20.50 |
| C2A-QS20-LFG15B-038CB | G | 15.0 | 38.0 | 48.0 | 50.3 | 32.8 | 20.00 | 20.00 | 101.80 | 20.50 |
| C2A-QS20-LFG15B-042CB | G | 15.0 | 42.0 | 60.0 | 50.3 | 32.8 | 20.00 | 20.00 | 101.80 | 20.50 |
| C2A-QS20-LFG15B-054CB | G | 15.0 | 54.0 | 75.0 | 50.3 | 32.8 | 20.00 | 20.00 | 101.80 | 20.50 |
| C2A-QS20-LFG15B-067CB | G | 15.0 | 67.0 | 100.0 | 50.3 | 32.8 | 20.00 | 20.00 | 101.80 | 20.50 |
| C2A-QS20-LFG15B-090CB | G | 15.0 | 90.0 | 160.0 | 50.3 | 32.8 | 20.00 | 20.00 | 101.80 | 20.50 |
| C2A-QS20-LFG15B-130CB | G | 15.0 | 130.0 | 160.0 | 50.3 | 32.8 | 20.00 | 20.00 | 101.80 | 20.50 |
| C2A-QS20-LFH18B-040CB | H | 18.0 | 40.0 | 60.0 | 55.6 | 38.1 | 20.00 | 20.00 | 107.10 | 20.50 |
| C2A-QS20-LFH18B-052CB | H | 18.0 | 52.0 | 72.0 | 55.6 | 38.1 | 20.00 | 20.00 | 107.10 | 20.50 |
| C2A-QS20-LFH18B-064CB | H | 18.0 | 64.0 | 100.0 | 55.6 | 38.1 | 20.00 | 20.00 | 107.10 | 20.50 |
| C2A-QS20-LFH18B-092CB | H | 18.0 | 92.0 | 140.0 | 55.6 | 38.1 | 20.00 | 20.00 | 107.10 | 20.50 |
| C2A-QS20-LFH18B-132CB | H | 18.0 | 132.0 | 230.0 | 55.6 | 38.1 | 20.00 | 20.00 | 107.10 | 20.50 |
| C2A-QS25-LFG15B-042CB | G | 15.0 | 42.0 | 60.0 | 58.3 | 32.8 | 25.00 | 25.00 | 116.80 | 25.50 |
| C2A-QS25-LFG15B-054CB | G | 15.0 | 54.0 | 75.0 | 58.3 | 32.8 | 25.00 | 25.00 | 116.80 | 25.50 |
| C2A-QS25-LFG15B-067CB | G | 15.0 | 67.0 | 100.0 | 58.3 | 32.8 | 25.00 | 25.00 | 116.80 | 25.50 |
| C2A-QS25-LFG15B-090CB | G | 15.0 | 90.0 | 160.0 | 58.3 | 32.8 | 25.00 | 25.00 | 116.80 | 25.50 |
| C2A-QS25-LFG15B-130CB | G | 15.0 | 130.0 | 160.0 | 58.3 | 32.8 | 25.00 | 25.00 | 116.80 | 25.50 |
| C2A-QS25-LFH18B-064CB | H | 18.0 | 64.0 | 100.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
| C2A-QS25-LFH18B-092CB | H | 18.0 | 92.0 | 140.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
| C2A-QS25-LFH18B-132CB | H | 18.0 | 132.0 | 230.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
| C2A-QS25-LFH18B-220CB | H | 18.0 | 220.0 | 500.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
| C2A-QS25-LFH18B-300CB | H | 18.0 | 300.0 | 800.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
| C2A-QS25-LFJ18B-040CB | J | 18.0 | 40.0 | 70.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
| C2A-QS25-LFJ18B-060CB | J | 18.0 | 60.0 | 95.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
| C2A-QS25-LFJ18B-085CB | J | 18.0 | 85.0 | 130.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
| C2A-QS25-LFJ18B-120CB | J | 18.0 | 120.0 | 180.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
R = Right hand, L = Left hand
