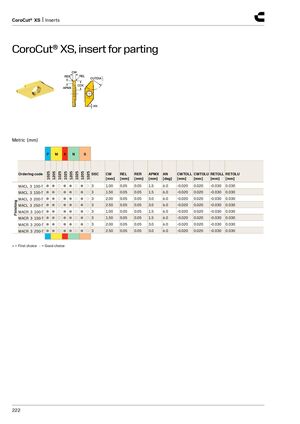

CoroCut® XS, insert for parting
Metric (mm)
| P M | K N | S | |||||||||||||
| Ordering code | 1025 1205 1025 | 1025 1205 | 1025 | 1205 | 1025 SSC | CW [mm] | REL [mm] | RER [mm] | APMX [mm] | AN [deg] | CWTOLL [mm] | CWTOL [mm] | U RETOLL [mm] | RETOLU [mm] | |
| MACL 3 100-T | ●●○ | ●● | ○ | ● | ○3 | 1.00 | 0.05 | 0.05 | 1.5 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 | |
| MACL 3 150-T | ●●○ | ●● | ○ | ● | ○3 | 1.50 | 0.05 | 0.05 | 1.5 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 | |
| g MACL 3 200-T | ●●○ | ●● | ○ | ● | ○3 | 2.00 | 0.05 | 0.05 | 3.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 | |
| shin MACL 3 250-T | ●●○ | ●● | ○ | ● | ○3 | 2.50 | 0.05 | 0.05 | 3.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 | |
| Fini MACR 3 100-T | ●●○ | ●● | ○ | ● | ○3 | 1.00 | 0.05 | 0.05 | 1.5 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 | |
| MACR 3 150-T | ●●○ | ●● | ○ | ● | ○3 | 1.50 | 0.05 | 0.05 | 1.5 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 | |
| MACR 3 200-T | ●●○ | ●● | ○ | ● | ○3 | 2.00 | 0.05 | 0.05 | 3.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 | |
| MACR 3 250-T | ●●○ | ●● | ○ | ● | ○3 | 2.50 | 0.05 | 0.05 | 3.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 |
- = First choice ○ = Good choice
