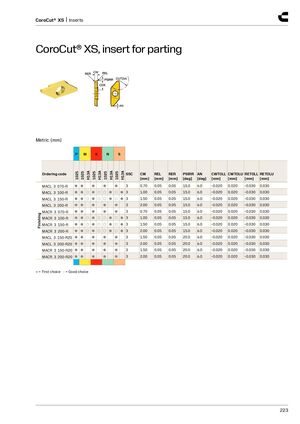

CoroCut® XS, insert for parting
Metric (mm)
| P M | K | N | S | |||||||||||
| Ordering code | 1025 1025 H13A | 1025 H13A | 1025 | H13A 1025 | H13A SSC | CW [mm] | REL [mm] | RER [mm] | PSIRR [deg] | AN [deg] | CWTOLL [mm] | CWTOLU [mm] | RETOLL [mm] | RETOLU [mm] |
| MACL 3 070-R | ●● | ● | ● | ● | 3 | 0.70 | 0.05 | 0.05 | 15.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 |
| MACL 3 100-R | ●●○ | ●○ | ○ | ●○ | ●3 | 1.00 | 0.05 | 0.05 | 15.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 |
| MACL 3 150-R | ●●○ | ●○ | ○ | ●○ | ●3 | 1.50 | 0.05 | 0.05 | 15.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 |
| MACL 3 200-R | ●● | ● | ● | ● | 3 | 2.00 | 0.05 | 0.05 | 15.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 |
| g MACR 3 070-R | ●● | ● | ● | ● | 3 | 0.70 | 0.05 | 0.05 | 15.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 |
| shin MACR 3 100-R | ●●○ | ●○ | ○ | ●○ | ●3 | 1.00 | 0.05 | 0.05 | 15.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 |
| Fini MACR 3 150-R | ●●○ | ●○ | ○ | ●○ | ●3 | 1.50 | 0.05 | 0.05 | 15.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 |
| MACR 3 200-R | ●●○ | ●○ | ○ | ●○ | ●3 | 2.00 | 0.05 | 0.05 | 15.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 |
| MACL 3 150-R20 | ●● | ● | ● | ● | 3 | 1.50 | 0.05 | 0.05 | 20.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 |
| MACL 3 200-R20 | ●● | ● | ● | ● | 3 | 2.00 | 0.05 | 0.05 | 20.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 |
| MACR 3 150-R20 | ●● | ● | ● | ● | 3 | 1.50 | 0.05 | 0.05 | 20.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 |
| MACR 3 200-R20 | ●● | ● | ● | ● | 3 | 2.00 | 0.05 | 0.05 | 20.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 |
- = First choice ○ = Good choice
