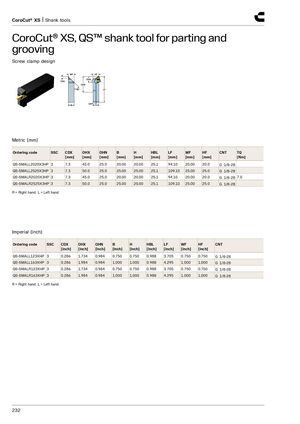

grooving
Screw clamp design
Metric (mm)
| Ordering code | SSC | CDX | OHX | OHN | B | H | HBL | LF | WF | HF | CNT | TQ |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [Nm] | |||
| QS-SMALL2020X3HP | 3 | 7.3 | 45.0 | 25.0 | 20.00 | 20.00 | 25.1 | 94.10 | 20.00 | 20.0 | G 1/8-28 | |
| QS-SMALL2525X3HP | 3 | 7.3 | 50.0 | 25.0 | 25.00 | 25.00 | 25.1 | 109.10 | 25.00 | 25.0 | G 1/8-28 | |
| QS-SMALR2020X3HP | 3 | 7.3 | 45.0 | 25.0 | 20.00 | 20.00 | 25.1 | 94.10 | 20.00 | 20.0 | G 1/8-28 | 7.0 |
| QS-SMALR2525X3HP | 3 | 7.3 | 50.0 | 25.0 | 25.00 | 25.00 | 25.1 | 109.10 | 25.00 | 25.0 | G 1/8-28 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | SSC | CDX | OHX | OHN | B | H | HBL | LF | WF | HF | CNT |
| [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | |||
| QS-SMALL123XHP | 3 | 0.286 | 1.734 | 0.984 | 0.750 | 0.750 | 0.988 | 3.705 | 0.750 | 0.750 | G 1/8-28 |
| QS-SMALL163XHP | 3 | 0.286 | 1.984 | 0.984 | 1.000 | 1.000 | 0.988 | 4.295 | 1.000 | 1.000 | G 1/8-28 |
| QS-SMALR123XHP | 3 | 0.286 | 1.734 | 0.984 | 0.750 | 0.750 | 0.988 | 3.705 | 0.750 | 0.750 | G 1/8-28 |
| QS-SMALR163XHP | 3 | 0.286 | 1.984 | 0.984 | 1.000 | 1.000 | 0.988 | 4.295 | 1.000 | 1.000 | G 1/8-28 |
R = Right hand, L = Left hand
