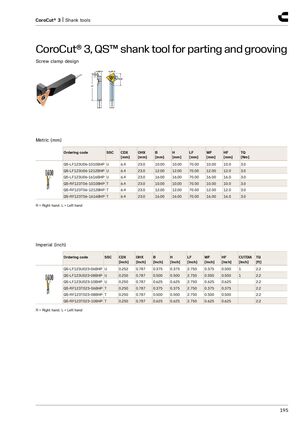

CoroCut® 3, QS™ shank tool for parting and grooving
Screw clamp design
Metric (mm)
| Ordering code SSC | CDX [mm] | OHX [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | TQ [Nm] |
| QS-LF123U06-1010BHP U | 6.4 | 23.0 | 10.00 | 10.00 | 70.00 | 10.00 | 10.0 | 3.0 |
| QS-LF123U06-1212BHP U | 6.4 | 23.0 | 12.00 | 12.00 | 70.00 | 12.00 | 12.0 | 3.0 |
| QS-LF123U06-1616BHP U | 6.4 | 23.0 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 3.0 |
| QS-RF123T06-1010BHP T | 6.4 | 23.0 | 10.00 | 10.00 | 70.00 | 10.00 | 10.0 | 3.0 |
| QS-RF123T06-1212BHP T | 6.4 | 23.0 | 12.00 | 12.00 | 70.00 | 12.00 | 12.0 | 3.0 |
| QS-RF123T06-1616BHP T | 6.4 | 23.0 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 3.0 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code SSC | CDX [inch] | OHX [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] | CUTDIA [inch] | TQ [ft] |
| QS-LF123U023-06BHP U | 0.252 | 0.787 | 0.375 | 0.375 | 2.750 | 0.375 | 0.500 | 1 | 2.2 |
| QS-LF123U023-08BHP U | 0.250 | 0.787 | 0.500 | 0.500 | 2.750 | 0.500 | 0.500 | 1 | 2.2 |
| QS-LF123U023-10BHP U | 0.250 | 0.787 | 0.625 | 0.625 | 2.750 | 0.625 | 0.625 | 2.2 | |
| QS-RF123T023-06BHP T | 0.250 | 0.787 | 0.375 | 0.375 | 2.750 | 0.375 | 0.375 | 2.2 | |
| QS-RF123T023-08BHP T | 0.250 | 0.787 | 0.500 | 0.500 | 2.750 | 0.500 | 0.500 | 2.2 | |
| QS-RF123T023-10BHP T | 0.250 | 0.787 | 0.625 | 0.625 | 2.750 | 0.625 | 0.625 | 2.2 |
R = Right hand, L = Left hand
