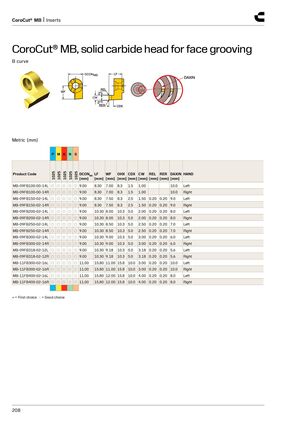

CoroCut® MB, solid carbide head for face grooving
B curve
Metric (mm)
PMKNS
| Product Code | 1025 | 1025 | 1025 | 1025 | 1025 | DCONMS [mm] | LF [mm] | WF [mm] | OHX [mm] | CDX [mm] | CW [mm] | REL [mm] | RER [mm] | DAXIN [mm] | HAND | ||
| MB-09FB100-00-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 8.30 | 7.00 | 8.3 | 1.5 | 1.00 | 10.0 | Left | ||||
| MB-09FB100-00-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 8.30 | 7.00 | 8.3 | 1.5 | 1.00 | 10.0 | Right | ||||
| MB-09FB150-02-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 8.30 | 7.50 | 8.3 | 2.5 | 1.50 | 0.20 | 0.20 | 9.0 | Left | ||
| MB-09FB150-02-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 8.30 | 7.50 | 8.3 | 2.5 | 1.50 | 0.20 | 0.20 | 9.0 | Right | ||
| MB-09FB200-02-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 8.00 | 10.3 | 5.0 | 2.00 | 0.20 | 0.20 | 8.0 | Left | ||
| MB-09FB200-02-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 8.00 | 10.3 | 5.0 | 2.00 | 0.20 | 0.20 | 8.0 | Right | ||
| MB-09FB250-02-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 8.50 | 10.3 | 5.0 | 2.50 | 0.20 | 0.20 | 7.0 | Left | ||
| MB-09FB250-02-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 8.50 | 10.3 | 5.0 | 2.50 | 0.20 | 0.20 | 7.0 | Right | ||
| MB-09FB300-02-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 9.00 | 10.3 | 5.0 | 3.00 | 0.20 | 0.20 | 6.0 | Left | ||
| MB-09FB300-02-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 9.00 | 10.3 | 5.0 | 3.00 | 0.20 | 0.20 | 6.0 | Right | ||
| MB-09FB318-02-12L | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 9.18 | 10.3 | 5.0 | 3.18 | 0.20 | 0.20 | 5.6 | Left | ||
| MB-09FB318-02-12R | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 9.18 | 10.3 | 5.0 | 3.18 | 0.20 | 0.20 | 5.6 | Right | ||
| MB-11FB300-02-16L | ○ | ○ | ○ | ○ | ○ | 11.00 | 15.80 | 11.00 | 15.8 | 10.0 | 3.00 | 0.20 | 0.20 | 10.0 | Left | ||
| MB-11FB300-02-16R | ○ | ○ | ○ | ○ | ○ | 11.00 | 15.80 | 11.00 | 15.8 | 10.0 | 3.00 | 0.20 | 0.20 | 10.0 | Right | ||
| MB-11FB400-02-16L | ○ | ○ | ○ | ○ | ○ | 11.00 | 15.80 | 12.00 | 15.8 | 10.0 | 4.00 | 0.20 | 0.20 | 8.0 | Left | ||
| MB-11FB400-02-16R | ○ | ○ | ○ | ○ | ○ | 11.00 | 15.80 | 12.00 | 15.8 | 10.0 | 4.00 | 0.20 | 0.20 | 8.0 | Right |
- = First choice = Good choice
