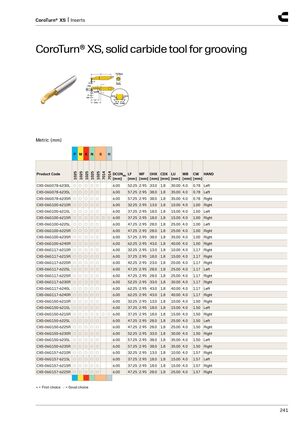

CoroTurn® XS, solid carbide tool for grooving
Metric (mm)
| P M | K | N | S | H | ||||||||||
| Product Code | 1025 1025 | 1025 | 1025 | 1025 7014 | 7014 DCONMS [mm] | LF [mm] | WF [mm] | OHX [mm] | CDX [mm] | LU [mm] | WB [mm | ] CW [mm] | HAND | |
| CXS-06G078-6230L | ○○ | ○ | ○ | 6.00 | 52.25 | 2.95 | 33.0 | 1.8 | 30.00 | 4.0 | 0.78 | Left | ||
| CXS-06G078-6235L | ○○ | ○ | ○ | 6.00 | 57.25 | 2.95 | 38.0 | 1.8 | 35.00 | 4.0 | 0.78 | Left | ||
| CXS-06G078-6235R | ○○ | ○ | ○ | 6.00 | 57.25 | 2.95 | 38.0 | 1.8 | 35.00 | 4.0 | 0.78 | Right | ||
| CXS-06G100-6210R | ○○ | ○ | ○ | 6.00 | 32.25 | 2.95 | 13.0 | 1.8 | 10.00 | 4.0 | 1.00 | Right | ||
| CXS-06G100-6215L | ○○ | ○ | ○ | 6.00 | 37.25 | 2.95 | 18.0 | 1.8 | 15.00 | 4.0 | 1.00 | Left | ||
| CXS-06G100-6215R | ○○ | ○ | ○○ | ○6.00 | 37.25 | 2.95 | 18.0 | 1.8 | 15.00 | 4.0 | 1.00 | Right | ||
| CXS-06G100-6225L | ○○ | ○ | ○ | 6.00 | 47.25 | 2.95 | 28.0 | 1.8 | 25.00 | 4.0 | 1.00 | Left | ||
| CXS-06G100-6225R | ○○ | ○ | ○ | 6.00 | 47.25 | 2.95 | 28.0 | 1.8 | 25.00 | 4.0 | 1.00 | Right | ||
| CXS-06G100-6235R | ○○ | ○ | ○ | 6.00 | 57.25 | 2.95 | 38.0 | 1.8 | 35.00 | 4.0 | 1.00 | Right | ||
| CXS-06G100-6240R | ○○ | ○ | ○ | 6.00 | 62.25 | 2.95 | 43.0 | 1.8 | 40.00 | 4.0 | 1.00 | Right | ||
| CXS-06G117-6210R | ○○ | ○ | ○ | 6.00 | 32.25 | 2.95 | 13.0 | 1.8 | 10.00 | 4.0 | 1.17 | Right | ||
| CXS-06G117-6215R | ○○ | ○ | ○ | 6.00 | 37.25 | 2.95 | 18.0 | 1.8 | 15.00 | 4.0 | 1.17 | Right | ||
| CXS-06G117-6220R | ○○ | ○ | ○ | 6.00 | 42.25 | 2.95 | 23.0 | 1.8 | 20.00 | 4.0 | 1.17 | Right | ||
| CXS-06G117-6225L | ○○ | ○ | ○ | 6.00 | 47.25 | 2.95 | 28.0 | 1.8 | 25.00 | 4.0 | 1.17 | Left | ||
| CXS-06G117-6225R | ○○ | ○ | ○ | 6.00 | 47.25 | 2.95 | 28.0 | 1.8 | 25.00 | 4.0 | 1.17 | Right | ||
| CXS-06G117-6230R | ○○ | ○ | ○ | 6.00 | 52.25 | 2.95 | 33.0 | 1.8 | 30.00 | 4.0 | 1.17 | Right | ||
| CXS-06G117-6240L | ○○ | ○ | ○ | 6.00 | 62.25 | 2.95 | 43.0 | 1.8 | 40.00 | 4.0 | 1.17 | Left | ||
| CXS-06G117-6240R | ○○ | ○ | ○ | 6.00 | 62.25 | 2.95 | 43.0 | 1.8 | 40.00 | 4.0 | 1.17 | Right | ||
| CXS-06G150-6210R | ○○ | ○ | ○ | 6.00 | 32.25 | 2.95 | 13.0 | 1.8 | 10.00 | 4.0 | 1.50 | Right | ||
| CXS-06G150-6215L | ○○ | ○ | ○ | 6.00 | 37.25 | 2.95 | 18.0 | 1.8 | 15.00 | 4.0 | 1.50 | Left | ||
| CXS-06G150-6215R | ○○ | ○ | ○○ | ○6.00 | 37.25 | 2.95 | 18.0 | 1.8 | 15.00 | 4.0 | 1.50 | Right | ||
| CXS-06G150-6225L | ○○ | ○ | ○ | 6.00 | 47.25 | 2.95 | 28.0 | 1.8 | 25.00 | 4.0 | 1.50 | Left | ||
| CXS-06G150-6225R | ○○ | ○ | ○ | 6.00 | 47.25 | 2.95 | 28.0 | 1.8 | 25.00 | 4.0 | 1.50 | Right | ||
| CXS-06G150-6230R | ○○ | ○ | ○ | 6.00 | 52.25 | 2.95 | 33.0 | 1.8 | 30.00 | 4.0 | 1.50 | Right | ||
| CXS-06G150-6235L | ○○ | ○ | ○ | 6.00 | 57.25 | 2.95 | 38.0 | 1.8 | 35.00 | 4.0 | 1.50 | Left | ||
| CXS-06G150-6235R | ○○ | ○ | ○ | 6.00 | 57.25 | 2.95 | 38.0 | 1.8 | 35.00 | 4.0 | 1.50 | Right | ||
| CXS-06G157-6210R | ○○ | ○ | ○ | 6.00 | 32.25 | 2.95 | 13.0 | 1.8 | 10.00 | 4.0 | 1.57 | Right | ||
| CXS-06G157-6215L | ○○ | ○ | ○ | 6.00 | 37.25 | 2.95 | 18.0 | 1.8 | 15.00 | 4.0 | 1.57 | Left | ||
| CXS-06G157-6215R | ○○ | ○ | ○ | 6.00 | 37.25 | 2.95 | 18.0 | 1.8 | 15.00 | 4.0 | 1.57 | Right | ||
| CXS-06G157-6225R | ○○ | ○ | ○ | 6.00 | 47.25 | 2.95 | 28.0 | 1.8 | 25.00 | 4.0 | 1.57 | Right |
