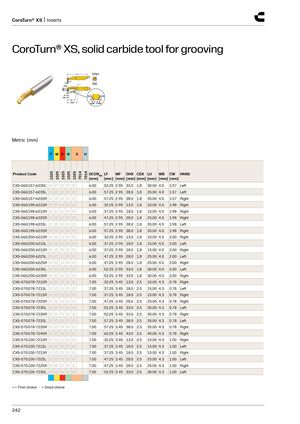

CoroTurn® XS, solid carbide tool for grooving
Metric (mm)
PMKN S H
| Product Code | 25 25 | 25 | 25 | 25 14 | 14 DCONMS | LF | WF | OHX | CDX | LU | WB | CW | HAND | |
| 10 10 | 10 | 1 | 10 70 | 70 [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm | ] [mm] | |||
| CXS-06G157-6230L | ○○ | ○ | ○ | ○ | 6.00 | 52.25 | 2.95 | 33.0 | 1.8 | 30.00 | 4.0 | 1.57 | Left | |
| CXS-06G157-6235L | ○○ | ○ | ○ | ○ | 6.00 | 57.25 | 2.95 | 38.0 | 1.8 | 35.00 | 4.0 | 1.57 | Left | |
| CXS-06G157-6235R | ○○ | ○ | ○ | ○ | 6.00 | 57.25 | 2.95 | 38.0 | 1.8 | 35.00 | 4.0 | 1.57 | Right | |
| CXS-06G198-6210R | ○○ | ○ | ○ | ○ | 6.00 | 32.25 | 2.95 | 13.0 | 1.8 | 10.00 | 4.0 | 1.98 | Right | |
| CXS-06G198-6215R | ○○ | ○ | ○ | ○ | 6.00 | 37.25 | 2.95 | 18.0 | 1.8 | 15.00 | 4.0 | 1.98 | Right | |
| CXS-06G198-6225R | ○○ | ○ | ○ | ○ | 6.00 | 47.25 | 2.95 | 28.0 | 1.8 | 25.00 | 4.0 | 1.98 | Right | |
| CXS-06G198-6235L | ○○ | ○ | ○ | ○ | 6.00 | 57.25 | 2.95 | 38.0 | 1.8 | 35.00 | 4.0 | 1.98 | Left | |
| CXS-06G198-6235R | ○○ | ○ | ○ | ○ | 6.00 | 57.25 | 2.95 | 38.0 | 1.8 | 35.00 | 4.0 | 1.98 | Right | |
| CXS-06G200-6210R | ○○ | ○ | ○ | ○ | 6.00 | 32.25 | 2.95 | 13.0 | 1.8 | 10.00 | 4.0 | 2.00 | Right | |
| CXS-06G200-6215L | ○○ | ○ | ○ | ○ | 6.00 | 37.25 | 2.95 | 18.0 | 1.8 | 15.00 | 4.0 | 2.00 | Left | |
| CXS-06G200-6215R | ○○ | ○ | ○ | ○ | 6.00 | 37.25 | 2.95 | 18.0 | 1.8 | 15.00 | 4.0 | 2.00 | Right | |
| CXS-06G200-6225L | ○○ | ○ | ○ | ○ | 6.00 | 47.25 | 2.95 | 28.0 | 1.8 | 25.00 | 4.0 | 2.00 | Left | |
| CXS-06G200-6225R | ○○ | ○ | ○ | ○ | 6.00 | 47.25 | 2.95 | 28.0 | 1.8 | 25.00 | 4.0 | 2.00 | Right | |
| CXS-06G200-6230L | ○○ | ○ | ○ | ○ | 6.00 | 52.25 | 2.95 | 33.0 | 1.8 | 30.00 | 4.0 | 2.00 | Left | |
| CXS-06G200-6230R | ○○ | ○ | ○ | ○ | 6.00 | 52.25 | 2.95 | 33.0 | 1.8 | 30.00 | 4.0 | 2.00 | Right | |
| CXS-07G078-7210R | ○○ | ○ | ○ | ○ | 7.00 | 32.25 | 3.45 | 13.0 | 2.5 | 10.00 | 4.3 | 0.78 | Right | |
| CXS-07G078-7215L | ○○ | ○ | ○ | ○ | 7.00 | 37.25 | 3.45 | 18.0 | 2.5 | 15.00 | 4.3 | 0.78 | Left | |
| CXS-07G078-7215R | ○○ | ○ | ○ | ○ | 7.00 | 37.25 | 3.45 | 18.0 | 2.5 | 15.00 | 4.3 | 0.78 | Right | |
| CXS-07G078-7225R | ○○ | ○ | ○ | ○ | 7.00 | 47.25 | 3.45 | 28.0 | 2.5 | 25.00 | 4.3 | 0.78 | Right | |
| CXS-07G078-7230L | ○○ | ○ | ○ | ○ | 7.00 | 52.25 | 3.45 | 33.0 | 2.5 | 30.00 | 4.3 | 0.78 | Left | |
| CXS-07G078-7230R | ○○ | ○ | ○ | ○ | 7.00 | 52.25 | 3.45 | 33.0 | 2.5 | 30.00 | 4.3 | 0.78 | Right | |
| CXS-07G078-7235L | ○○ | ○ | ○ | ○ | 7.00 | 57.25 | 3.45 | 38.0 | 2.5 | 35.00 | 4.3 | 0.78 | Left | |
| CXS-07G078-7235R | ○○ | ○ | ○ | ○ | 7.00 | 57.25 | 3.45 | 38.0 | 2.5 | 35.00 | 4.3 | 0.78 | Right | |
| CXS-07G078-7240R | ○○ | ○ | ○ | ○ | 7.00 | 62.25 | 3.45 | 43.0 | 2.5 | 40.00 | 4.3 | 0.78 | Right | |
| CXS-07G100-7210R | ○○ | ○ | ○ | ○ | 7.00 | 32.25 | 3.45 | 13.0 | 2.5 | 10.00 | 4.3 | 1.00 | Right | |
| CXS-07G100-7215L | ○○ | ○ | ○ | ○ | 7.00 | 37.25 | 3.45 | 18.0 | 2.5 | 15.00 | 4.3 | 1.00 | Left | |
| CXS-07G100-7215R | ○○ | ○ | ○ | ○ | 7.00 | 37.25 | 3.45 | 18.0 | 2.5 | 15.00 | 4.3 | 1.00 | Right | |
| CXS-07G100-7225L | ○○ | ○ | ○ | ○ | 7.00 | 47.25 | 3.45 | 28.0 | 2.5 | 25.00 | 4.3 | 1.00 | Left | |
| CXS-07G100-7225R | ○○ | ○ | ○ | ○ | 7.00 | 47.25 | 3.45 | 28.0 | 2.5 | 25.00 | 4.3 | 1.00 | Right | |
| CXS-07G100-7230L | ○○ | ○ | ○ | ○ | 7.00 | 52.25 | 3.45 | 33.0 | 2.5 | 30.00 | 4.3 | 1.00 | Left |
