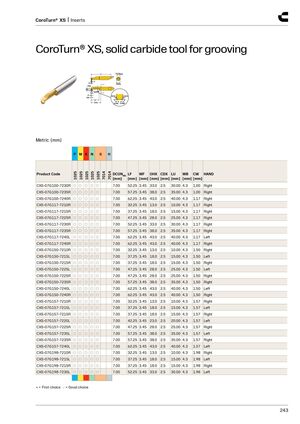

CoroTurn® XS, solid carbide tool for grooving
Metric (mm)
| P M | K | N | S | H | ||||||||||
| Product Code | 1025 1025 | 1025 | 1025 | 1025 7014 | 7014 DCONMS [mm] | LF [mm] | WF [mm] | OHX [mm] | CDX [mm] | LU [mm] | WB [mm | ] CW [mm] | HAND | |
| CXS-07G100-7230R | ○○ | ○ | ○ | 7.00 | 52.25 | 3.45 | 33.0 | 2.5 | 30.00 | 4.3 | 1.00 | Right | ||
| CXS-07G100-7235R | ○○ | ○ | ○ | 7.00 | 57.25 | 3.45 | 38.0 | 2.5 | 35.00 | 4.3 | 1.00 | Right | ||
| CXS-07G100-7240R | ○○ | ○ | ○ | 7.00 | 62.25 | 3.45 | 43.0 | 2.5 | 40.00 | 4.3 | 1.17 | Right | ||
| CXS-07G117-7210R | ○○ | ○ | ○ | 7.00 | 32.25 | 3.45 | 13.0 | 2.5 | 10.00 | 4.3 | 1.17 | Right | ||
| CXS-07G117-7215R | ○○ | ○ | ○ | 7.00 | 37.25 | 3.45 | 18.0 | 2.5 | 15.00 | 4.3 | 1.17 | Right | ||
| CXS-07G117-7225R | ○○ | ○ | ○ | 7.00 | 47.25 | 3.45 | 28.0 | 2.5 | 25.00 | 4.3 | 1.17 | Right | ||
| CXS-07G117-7230R | ○○ | ○ | ○ | 7.00 | 52.25 | 3.45 | 33.0 | 2.5 | 30.00 | 4.3 | 1.17 | Right | ||
| CXS-07G117-7235R | ○○ | ○ | ○ | 7.00 | 57.25 | 3.45 | 38.0 | 2.5 | 35.00 | 4.3 | 1.17 | Right | ||
| CXS-07G117-7240L | ○○ | ○ | ○ | 7.00 | 62.25 | 3.45 | 43.0 | 2.5 | 40.00 | 4.3 | 1.17 | Left | ||
| CXS-07G117-7240R | ○○ | ○ | ○ | 7.00 | 62.25 | 3.45 | 43.0 | 2.5 | 40.00 | 4.3 | 1.17 | Right | ||
| CXS-07G150-7210R | ○○ | ○ | ○ | 7.00 | 32.25 | 3.45 | 13.0 | 2.5 | 10.00 | 4.3 | 1.50 | Right | ||
| CXS-07G150-7215L | ○○ | ○ | ○ | 7.00 | 37.25 | 3.45 | 18.0 | 2.5 | 15.00 | 4.3 | 1.50 | Left | ||
| CXS-07G150-7215R | ○○ | ○ | ○ | 7.00 | 37.25 | 3.45 | 18.0 | 2.5 | 15.00 | 4.3 | 1.50 | Right | ||
| CXS-07G150-7225L | ○○ | ○ | ○ | 7.00 | 47.25 | 3.45 | 28.0 | 2.5 | 25.00 | 4.3 | 1.50 | Left | ||
| CXS-07G150-7225R | ○○ | ○ | ○ | 7.00 | 47.25 | 3.45 | 28.0 | 2.5 | 25.00 | 4.3 | 1.50 | Right | ||
| CXS-07G150-7235R | ○○ | ○ | ○ | 7.00 | 57.25 | 3.45 | 38.0 | 2.5 | 35.00 | 4.3 | 1.50 | Right | ||
| CXS-07G150-7240L | ○○ | ○ | ○ | 7.00 | 62.25 | 3.45 | 43.0 | 2.5 | 40.00 | 4.3 | 1.50 | Left | ||
| CXS-07G150-7240R | ○○ | ○ | ○ | 7.00 | 62.25 | 3.45 | 43.0 | 2.5 | 40.00 | 4.3 | 1.50 | Right | ||
| CXS-07G157-7210R | ○○ | ○ | ○ | 7.00 | 32.25 | 3.45 | 13.0 | 2.5 | 10.00 | 4.3 | 1.57 | Right | ||
| CXS-07G157-7215L | ○○ | ○ | ○ | 7.00 | 37.25 | 3.45 | 18.0 | 2.5 | 15.00 | 4.3 | 1.57 | Left | ||
| CXS-07G157-7215R | ○○ | ○ | ○ | 7.00 | 37.25 | 3.45 | 18.0 | 2.5 | 15.00 | 4.3 | 1.57 | Right | ||
| CXS-07G157-7220L | ○○ | ○ | ○ | 7.00 | 42.25 | 3.45 | 23.0 | 2.5 | 20.00 | 4.3 | 1.57 | Left | ||
| CXS-07G157-7225R | ○○ | ○ | ○ | 7.00 | 47.25 | 3.45 | 28.0 | 2.5 | 25.00 | 4.3 | 1.57 | Right | ||
| CXS-07G157-7235L | ○○ | ○ | ○ | 7.00 | 57.25 | 3.45 | 38.0 | 2.5 | 35.00 | 4.3 | 1.57 | Left | ||
| CXS-07G157-7235R | ○○ | ○ | ○ | 7.00 | 57.25 | 3.45 | 38.0 | 2.5 | 35.00 | 4.3 | 1.57 | Right | ||
| CXS-07G157-7240L | ○○ | ○ | ○ | 7.00 | 62.25 | 3.45 | 43.0 | 2.5 | 40.00 | 4.3 | 1.57 | Left | ||
| CXS-07G198-7210R | ○○ | ○ | ○ | 7.00 | 32.25 | 3.45 | 13.0 | 2.5 | 10.00 | 4.3 | 1.98 | Right | ||
| CXS-07G198-7215L | ○○ | ○ | ○ | 7.00 | 37.25 | 3.45 | 18.0 | 2.5 | 15.00 | 4.3 | 1.98 | Left | ||
| CXS-07G198-7215R | ○○ | ○ | ○ | 7.00 | 37.25 | 3.45 | 18.0 | 2.5 | 15.00 | 4.3 | 1.98 | Right | ||
| CXS-07G198-7230L | ○○ | ○ | ○ | 7.00 | 52.25 | 3.45 | 33.0 | 2.5 | 30.00 | 4.3 | 1.98 | Left |
