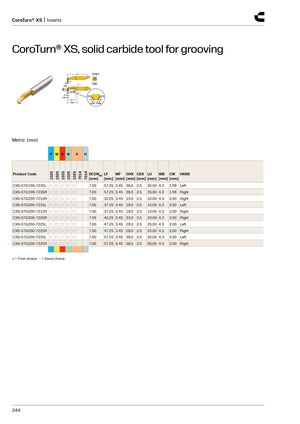

CoroTurn® XS, solid carbide tool for grooving
Metric (mm)
PMKN S H
| Product Code | 1025 | 1025 | 1025 | 1025 | 1025 | 7014 | 7014 DCONMS [mm] | LF [mm] | WF [mm] | OHX [mm] | CDX [mm] | LU [mm] | WB [mm] | CW [mm] | HAND | |
| CXS-07G198-7235L | ○ | ○ | ○ | ○ | ○ | 7.00 | 57.25 | 3.45 | 38.0 | 2.5 | 35.00 | 4.3 | 1.98 | Left | ||
| CXS-07G198-7235R | ○ | ○ | ○ | ○ | ○ | 7.00 | 57.25 | 3.45 | 38.0 | 2.5 | 35.00 | 4.3 | 1.98 | Right | ||
| CXS-07G200-7210R | ○ | ○ | ○ | ○ | ○ | 7.00 | 32.25 | 3.45 | 13.0 | 2.5 | 10.00 | 4.3 | 2.00 | Right | ||
| CXS-07G200-7215L | ○ | ○ | ○ | ○ | ○ | 7.00 | 37.25 | 3.45 | 18.0 | 2.5 | 15.00 | 4.3 | 2.00 | Left | ||
| CXS-07G200-7215R | ○ | ○ | ○ | ○ | ○ | 7.00 | 37.25 | 3.45 | 18.0 | 2.5 | 15.00 | 4.3 | 2.00 | Right | ||
| CXS-07G200-7220R | ○ | ○ | ○ | ○ | ○ | 7.00 | 42.25 | 3.45 | 23.0 | 2.5 | 20.00 | 4.3 | 2.00 | Right | ||
| CXS-07G200-7225L | ○ | ○ | ○ | ○ | ○ | 7.00 | 47.25 | 3.45 | 28.0 | 2.5 | 25.00 | 4.3 | 2.00 | Left | ||
| CXS-07G200-7225R | ○ | ○ | ○ | ○ | ○ | 7.00 | 47.25 | 3.45 | 28.0 | 2.5 | 25.00 | 4.3 | 2.00 | Right | ||
| CXS-07G200-7235L | ○ | ○ | ○ | ○ | ○ | 7.00 | 57.25 | 3.45 | 38.0 | 2.5 | 35.00 | 4.3 | 2.00 | Left | ||
| CXS-07G200-7235R | ○ | ○ | ○ | ○ | ○ | 7.00 | 57.25 | 3.45 | 38.0 | 2.5 | 35.00 | 4.3 | 2.00 | Right |
- = First choice = Good choice
