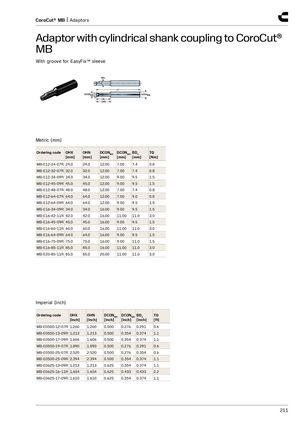

MB
With groove for EasyFix™ sleeve
Metric (mm)
| Ordering code | OHX [mm] | OHN [mm] | DCONMS [mm] | DCONW [mm] | S BD1 [mm] | TQ [Nm] |
| MB-E12-24-07R | 24.0 | 24.0 | 12.00 | 7.00 | 7.4 | 0.8 |
| MB-E12-32-07R | 32.0 | 32.0 | 12.00 | 7.00 | 7.4 | 0.8 |
| MB-E12-34-09R | 34.0 | 34.0 | 12.00 | 9.00 | 9.5 | 1.5 |
| MB-E12-45-09R | 45.0 | 45.0 | 12.00 | 9.00 | 9.5 | 1.5 |
| MB-E12-48-07R | 48.0 | 48.0 | 12.00 | 7.00 | 7.4 | 0.8 |
| MB-E12-64-07R | 64.0 | 64.0 | 12.00 | 7.00 | 9.0 | 0.8 |
| MB-E12-64-09R | 64.0 | 64.0 | 12.00 | 9.00 | 9.5 | 1.5 |
| MB-E16-34-09R | 34.0 | 34.0 | 16.00 | 9.00 | 9.5 | 1.5 |
| MB-E16-42-11R | 42.0 | 42.0 | 16.00 | 11.00 | 11.0 | 3.0 |
| MB-E16-45-09R | 45.0 | 45.0 | 16.00 | 9.00 | 9.5 | 1.5 |
| MB-E16-60-11R | 60.0 | 60.0 | 16.00 | 11.00 | 11.0 | 3.0 |
| MB-E16-64-09R | 64.0 | 64.0 | 16.00 | 9.00 | 9.5 | 1.5 |
| MB-E16-75-09R | 75.0 | 75.0 | 16.00 | 9.00 | 11.0 | 1.5 |
| MB-E16-85-11R | 85.0 | 85.0 | 16.00 | 11.00 | 11.0 | 3.0 |
| MB-E20-85-11R | 85.0 | 85.0 | 20.00 | 11.00 | 11.0 | 3.0 |
Imperial (inch)
| Ordering code | OHX [inch] | OHN [inch] | DCONMS [inch] | DCONWS [inch] | BD1 [inch] | TQ [ft] |
| MB-E0500-12-07R | 1.260 | 1.260 | 0.500 | 0.276 | 0.291 | 0.6 |
| MB-E0500-13-09R | 1.213 | 1.213 | 0.500 | 0.354 | 0.374 | 1.1 |
| MB-E0500-17-09R | 1.606 | 1.606 | 0.500 | 0.354 | 0.374 | 1.1 |
| MB-E0500-19-07R | 1.890 | 1.890 | 0.500 | 0.276 | 0.291 | 0.6 |
| MB-E0500-25-07R | 2.520 | 2.520 | 0.500 | 0.276 | 0.354 | 0.6 |
| MB-E0500-25-09R | 2.394 | 2.394 | 0.500 | 0.354 | 0.374 | 1.1 |
| MB-E0625-13-09R | 1.213 | 1.213 | 0.625 | 0.354 | 0.374 | 1.1 |
| MB-E0625-16-11R | 1.654 | 1.654 | 0.625 | 0.433 | 0.433 | 2.2 |
| MB-E0625-17-09R | 1.610 | 1.610 | 0.625 | 0.354 | 0.374 | 1.1 |
