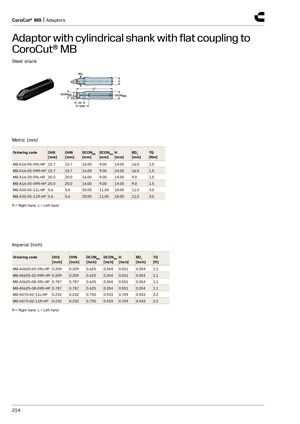

CoroCut® MB
Steel shank
Metric (mm)
| Ordering code | OHX [mm] | OHN [mm] | DCONMS [mm] | DCONWS [mm] | H [mm] | BD1 [mm] | TQ [Nm] |
| MB-A16-05-09L-HP | 15.7 | 15.7 | 16.00 | 9.00 | 14.00 | 16.0 | 1.5 |
| MB-A16-05-09R-HP | 15.7 | 15.7 | 16.00 | 9.00 | 14.00 | 16.0 | 1.5 |
| MB-A16-20-09L-HP | 20.0 | 20.0 | 16.00 | 9.00 | 14.00 | 9.0 | 1.5 |
| MB-A16-20-09R-HP | 20.0 | 20.0 | 16.00 | 9.00 | 14.00 | 9.0 | 1.5 |
| MB-A20-05-11L-HP | 5.6 | 5.6 | 20.00 | 11.00 | 18.00 | 11.0 | 3.0 |
| MB-A20-05-11R-HP | 5.6 | 5.6 | 20.00 | 11.00 | 18.00 | 11.0 | 3.0 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | OHX [inch] | OHN [inch] | DCONMS [inch] | DCONWS [inch] | H [inch] | BD1 [inch] | TQ [ft] |
| MB-A0625-02-09L-HP | 0.209 | 0.209 | 0.625 | 0.354 | 0.551 | 0.354 | 1.1 |
| MB-A0625-02-09R-HP | 0.209 | 0.209 | 0.625 | 0.354 | 0.551 | 0.354 | 1.1 |
| MB-A0625-08-09L-HP | 0.787 | 0.787 | 0.625 | 0.354 | 0.551 | 0.354 | 1.1 |
| MB-A0625-08-09R-HP | 0.787 | 0.787 | 0.625 | 0.354 | 0.551 | 0.354 | 1.1 |
| MB-A075-02-11L-HP | 0.232 | 0.232 | 0.750 | 0.433 | 0.709 | 0.433 | 2.2 |
| MB-A075-02-11R-HP | 0.232 | 0.232 | 0.750 | 0.433 | 0.709 | 0.433 | 2.2 |
R = Right hand, L = Left hand
