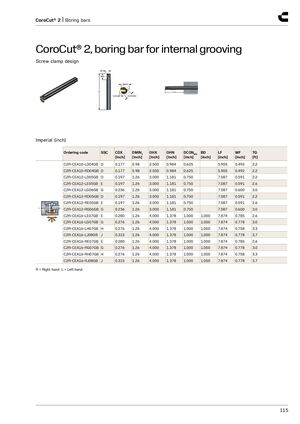

CoroCut® 2, boring bar for internal grooving
Screw clamp design
WF OHN
DMIN1
LF OHX CDX DCON MS
Imperial (inch)
| Ordering code | SSC | CDX [inch] | DMIN1 [inch] | OHX [inch] | OHN [inch] | DCONMS [inch] | BD [inch] | LF [inch] | WF [inch] | TQ [ft] |
| C2R-CEA10-LD04GB | D | 0.177 | 0.98 | 2.500 | 0.984 | 0.625 | 5.905 | 0.492 | 2.2 | |
| C2R-CEA10-RD04GB | D | 0.177 | 0.98 | 2.500 | 0.984 | 0.625 | 5.905 | 0.492 | 2.2 | |
| C2R-CEA12-LD05GB | D | 0.197 | 1.26 | 3.000 | 1.181 | 0.750 | 7.087 | 0.591 | 2.2 | |
| C2R-CEA12-LE05GB | E | 0.197 | 1.26 | 3.000 | 1.181 | 0.750 | 7.087 | 0.591 | 2.6 | |
| C2R-CEA12-LG06GB | G | 0.236 | 1.26 | 3.000 | 1.181 | 0.750 | 7.087 | 0.600 | 3.0 | |
| C2R-CEA12-RD05GB | D | 0.197 | 1.26 | 3.000 | 1.181 | 0.750 | 7.087 | 0.591 | 2.2 | |
| C2R-CEA12-RE05GB | E | 0.197 | 1.26 | 3.000 | 1.181 | 0.750 | 7.087 | 0.591 | 2.6 | |
| C2R-CEA12-RG06GB | G | 0.236 | 1.26 | 3.000 | 1.181 | 0.750 | 7.087 | 0.600 | 3.0 | |
| C2R-CEA16-LE07GB | E | 0.280 | 1.26 | 4.000 | 1.378 | 1.000 | 1.000 | 7.874 | 0.785 | 2.6 |
| C2R-CEA16-LG07GB | G | 0.276 | 1.26 | 4.000 | 1.378 | 1.000 | 1.000 | 7.874 | 0.778 | 3.0 |
| C2R-CEA16-LH07GB | H | 0.276 | 1.26 | 4.000 | 1.378 | 1.000 | 1.000 | 7.874 | 0.758 | 3.3 |
| C2R-CEA16-LJ08GB | J | 0.315 | 1.26 | 4.000 | 1.378 | 1.000 | 1.000 | 7.874 | 0.778 | 3.7 |
| C2R-CEA16-RE07GB | E | 0.280 | 1.26 | 4.000 | 1.378 | 1.000 | 1.000 | 7.874 | 0.785 | 2.6 |
| C2R-CEA16-RG07GB | G | 0.276 | 1.26 | 4.000 | 1.378 | 1.000 | 1.000 | 7.874 | 0.778 | 3.0 |
| C2R-CEA16-RH07GB | H | 0.276 | 1.26 | 4.000 | 1.378 | 1.000 | 1.000 | 7.874 | 0.758 | 3.3 |
| C2R-CEA16-RJ08GB | J | 0.315 | 1.26 | 4.000 | 1.378 | 1.000 | 1.000 | 7.874 | 0.778 | 3.7 |
R = Right hand, L = Left hand
