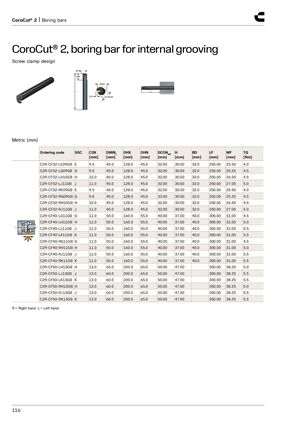

CoroCut® 2, boring bar for internal grooving
Screw clamp design
WF OHN
DMIN1
LF OHX CDX DCON MS
Metric (mm)
| Ordering code | SSC | CDX [mm] | DMIN1 [mm] | OHX [mm] | OHN [mm] | DCONMS [mm] | H [mm] | BD [mm] | LF [mm] | WF [mm] | TQ [Nm] |
| C2R-CF32-LE09GB | E | 9.5 | 40.0 | 128.0 | 45.0 | 32.00 | 30.00 | 32.0 | 250.00 | 25.50 | 4.0 |
| C2R-CF32-LG09GB | G | 9.0 | 40.0 | 128.0 | 45.0 | 32.00 | 30.00 | 32.0 | 250.00 | 25.25 | 4.5 |
| C2R-CF32-LH10GB | H | 10.0 | 40.0 | 128.0 | 45.0 | 32.00 | 30.00 | 32.0 | 250.00 | 26.50 | 4.5 |
| C2R-CF32-LJ11GB | J | 11.0 | 40.0 | 128.0 | 45.0 | 32.00 | 30.00 | 32.0 | 250.00 | 27.00 | 5.0 |
| C2R-CF32-RE09GB | E | 9.5 | 40.0 | 128.0 | 45.0 | 32.00 | 30.00 | 32.0 | 250.00 | 25.50 | 4.0 |
| C2R-CF32-RG09GB | G | 9.0 | 40.0 | 128.0 | 45.0 | 32.00 | 30.00 | 32.0 | 250.00 | 25.25 | 4.5 |
| C2R-CF32-RH10GB | H | 10.0 | 40.0 | 128.0 | 45.0 | 32.00 | 30.00 | 32.0 | 250.00 | 26.50 | 4.5 |
| C2R-CF32-RJ11GB | J | 11.0 | 40.0 | 128.0 | 45.0 | 32.00 | 30.00 | 32.0 | 250.00 | 27.00 | 5.0 |
| C2R-CF40-LG11GB | G | 11.0 | 50.0 | 160.0 | 55.0 | 40.00 | 37.00 | 40.0 | 300.00 | 31.00 | 4.5 |
| C2R-CF40-LH11GB | H | 11.0 | 50.0 | 160.0 | 55.0 | 40.00 | 37.00 | 40.0 | 300.00 | 31.00 | 5.0 |
| C2R-CF40-LJ11GB | J | 11.0 | 50.0 | 160.0 | 55.0 | 40.00 | 37.00 | 40.0 | 300.00 | 31.00 | 5.5 |
| C2R-CF40-LK11GB | K | 11.0 | 50.0 | 160.0 | 55.0 | 40.00 | 37.00 | 40.0 | 300.00 | 31.00 | 5.5 |
| C2R-CF40-RG11GB | G | 11.0 | 50.0 | 160.0 | 55.0 | 40.00 | 37.00 | 40.0 | 300.00 | 31.00 | 4.5 |
| C2R-CF40-RH11GB | H | 11.0 | 50.0 | 160.0 | 55.0 | 40.00 | 37.00 | 40.0 | 300.00 | 31.00 | 5.0 |
| C2R-CF40-RJ11GB | J | 11.0 | 50.0 | 160.0 | 55.0 | 40.00 | 37.00 | 40.0 | 300.00 | 31.00 | 5.5 |
| C2R-CF40-RK11GB | K | 11.0 | 50.0 | 160.0 | 55.0 | 40.00 | 37.00 | 40.0 | 300.00 | 31.00 | 5.5 |
| C2R-CF50-LH13GB | H | 13.0 | 60.0 | 200.0 | 65.0 | 50.00 | 47.00 | 350.00 | 38.25 | 5.0 | |
| C2R-CF50-LJ13GB | J | 13.0 | 60.0 | 200.0 | 65.0 | 50.00 | 47.00 | 350.00 | 38.25 | 5.5 | |
| C2R-CF50-LK13GB | K | 13.0 | 60.0 | 200.0 | 65.0 | 50.00 | 47.00 | 350.00 | 38.25 | 5.5 | |
| C2R-CF50-RH13GB | H | 13.0 | 60.0 | 200.0 | 65.0 | 50.00 | 47.00 | 350.00 | 38.25 | 5.0 | |
| C2R-CF50-RJ13GB | J | 13.0 | 60.0 | 200.0 | 65.0 | 50.00 | 47.00 | 350.00 | 38.25 | 5.5 | |
| C2R-CF50-RK13GB | K | 13.0 | 60.0 | 200.0 | 65.0 | 50.00 | 47.00 | 350.00 | 38.25 | 5.5 |
R = Right hand, L = Left hand
