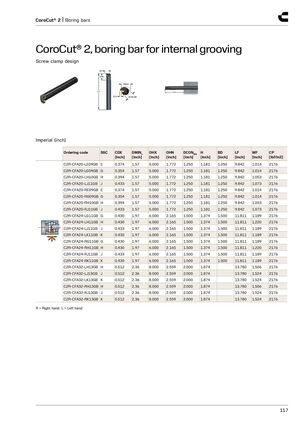

CoroCut® 2, boring bar for internal grooving
Screw clamp design
WF OHN
DMIN1
LF OHX CDX DCON MS
Imperial (inch)
| Ordering code | SSC | CDX [inch] | DMIN1 [inch] | OHX [inch] | OHN [inch] | DCONMS [inch] | H [inch] | BD [inch] | LF [inch] | WF [inch] | CP [lbf/in2] |
| C2R-CFA20-LE09GB | E | 0.374 | 1.57 | 5.000 | 1.772 | 1.250 | 1.181 | 1.250 | 9.842 | 1.014 | 2176 |
| C2R-CFA20-LG09GB | G | 0.354 | 1.57 | 5.000 | 1.772 | 1.250 | 1.181 | 1.250 | 9.842 | 1.014 | 2176 |
| C2R-CFA20-LH10GB | H | 0.394 | 1.57 | 5.000 | 1.772 | 1.250 | 1.181 | 1.250 | 9.842 | 1.053 | 2176 |
| C2R-CFA20-LJ11GB | J | 0.433 | 1.57 | 5.000 | 1.772 | 1.250 | 1.181 | 1.250 | 9.842 | 1.073 | 2176 |
| C2R-CFA20-RE09GB | E | 0.374 | 1.57 | 5.000 | 1.772 | 1.250 | 1.181 | 1.250 | 9.842 | 1.014 | 2176 |
| C2R-CFA20-RG09GB | G | 0.354 | 1.57 | 5.000 | 1.772 | 1.250 | 1.181 | 1.250 | 9.842 | 1.014 | 2176 |
| C2R-CFA20-RH10GB | H | 0.394 | 1.57 | 5.000 | 1.772 | 1.250 | 1.181 | 1.250 | 9.842 | 1.053 | 2176 |
| C2R-CFA20-RJ11GB | J | 0.433 | 1.57 | 5.000 | 1.772 | 1.250 | 1.181 | 1.250 | 9.842 | 1.073 | 2176 |
| C2R-CFA24-LG11GB | G | 0.430 | 1.97 | 6.000 | 2.165 | 1.500 | 1.374 | 1.500 | 11.811 | 1.189 | 2176 |
| C2R-CFA24-LH11GB | H | 0.430 | 1.97 | 6.000 | 2.165 | 1.500 | 1.374 | 1.500 | 11.811 | 1.220 | 2176 |
| C2R-CFA24-LJ11GB | J | 0.433 | 1.97 | 6.000 | 2.165 | 1.500 | 1.374 | 1.500 | 11.811 | 1.189 | 2176 |
| C2R-CFA24-LK11GB | K | 0.430 | 1.97 | 6.000 | 2.165 | 1.500 | 1.374 | 1.500 | 11.811 | 1.189 | 2176 |
| C2R-CFA24-RG11GB | G | 0.430 | 1.97 | 6.000 | 2.165 | 1.500 | 1.374 | 1.500 | 11.811 | 1.189 | 2176 |
| C2R-CFA24-RH11GB | H | 0.430 | 1.97 | 6.000 | 2.165 | 1.500 | 1.374 | 1.500 | 11.811 | 1.220 | 2176 |
| C2R-CFA24-RJ11GB | J | 0.433 | 1.97 | 6.000 | 2.165 | 1.500 | 1.374 | 1.500 | 11.811 | 1.189 | 2176 |
| C2R-CFA24-RK11GB | K | 0.430 | 1.97 | 6.000 | 2.165 | 1.500 | 1.374 | 1.500 | 11.811 | 1.189 | 2176 |
| C2R-CFA32-LH13GB | H | 0.512 | 2.36 | 8.000 | 2.559 | 2.000 | 1.874 | 13.780 | 1.506 | 2176 | |
| C2R-CFA32-LJ13GB | J | 0.512 | 2.36 | 8.000 | 2.559 | 2.000 | 1.874 | 13.780 | 1.524 | 2176 | |
| C2R-CFA32-LK13GB | K | 0.512 | 2.36 | 8.000 | 2.559 | 2.000 | 1.874 | 13.780 | 1.524 | 2176 | |
| C2R-CFA32-RH13GB | H | 0.512 | 2.36 | 8.000 | 2.559 | 2.000 | 1.874 | 13.780 | 1.506 | 2176 | |
| C2R-CFA32-RJ13GB | J | 0.512 | 2.36 | 8.000 | 2.559 | 2.000 | 1.874 | 13.780 | 1.524 | 2176 | |
| C2R-CFA32-RK13GB | K | 0.512 | 2.36 | 8.000 | 2.559 | 2.000 | 1.874 | 13.780 | 1.524 | 2176 |
R = Right hand, L = Left hand
