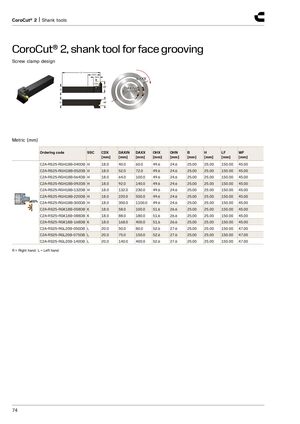

CoroCut® 2, shank tool for face grooving
Screw clamp design
LF OHX OHN
CDX WF B
H HF
Metric (mm)
| Ordering code SSC | CDX [mm] | DAXIN [mm] | DAXX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] |
| C2A-RS25-RGH18B-040DB H | 18.0 | 40.0 | 60.0 | 49.6 | 24.6 | 25.00 | 25.00 | 150.00 | 45.00 |
| C2A-RS25-RGH18B-052DB H | 18.0 | 52.0 | 72.0 | 49.6 | 24.6 | 25.00 | 25.00 | 150.00 | 45.00 |
| C2A-RS25-RGH18B-064DB H | 18.0 | 64.0 | 100.0 | 49.6 | 24.6 | 25.00 | 25.00 | 150.00 | 45.00 |
| C2A-RS25-RGH18B-092DB H | 18.0 | 92.0 | 140.0 | 49.6 | 24.6 | 25.00 | 25.00 | 150.00 | 45.00 |
| C2A-RS25-RGH18B-132DB H | 18.0 | 132.0 | 230.0 | 49.6 | 24.6 | 25.00 | 25.00 | 150.00 | 45.00 |
| C2A-RS25-RGH18B-220DB H | 18.0 | 220.0 | 500.0 | 49.6 | 24.6 | 25.00 | 25.00 | 150.00 | 45.00 |
| C2A-RS25-RGH18B-300DB H | 18.0 | 300.0 | 1100.0 | 49.6 | 24.6 | 25.00 | 25.00 | 150.00 | 45.00 |
| C2A-RS25-RGK18B-058DB K | 18.0 | 58.0 | 100.0 | 51.6 | 26.6 | 25.00 | 25.00 | 150.00 | 45.00 |
| C2A-RS25-RGK18B-088DB K | 18.0 | 88.0 | 180.0 | 51.6 | 26.6 | 25.00 | 25.00 | 150.00 | 45.00 |
| C2A-RS25-RGK18B-168DB K | 18.0 | 168.0 | 400.0 | 51.6 | 26.6 | 25.00 | 25.00 | 150.00 | 45.00 |
| C2A-RS25-RGL20B-050DB L | 20.0 | 50.0 | 80.0 | 52.6 | 27.6 | 25.00 | 25.00 | 150.00 | 47.00 |
| C2A-RS25-RGL20B-075DB L | 20.0 | 75.0 | 150.0 | 52.6 | 27.6 | 25.00 | 25.00 | 150.00 | 47.00 |
| C2A-RS25-RGL20B-140DB L | 20.0 | 140.0 | 400.0 | 52.6 | 27.6 | 25.00 | 25.00 | 150.00 | 47.00 |
R = Right hand, L = Left hand
