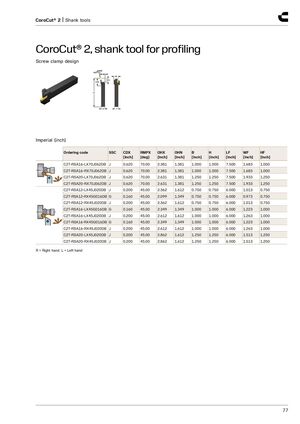

CoroCut® 2, shank tool for profiling
Screw clamp design
RMPX WF HF CDX OHX
LF
B H
Imperial (inch)
| Ordering code | SSC | CDX [inch] | RMPX [deg] | OHX [inch] | OHN [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] |
| C2T-RSA16-LX70J062DB | J | 0.620 | 70.00 | 2.381 | 1.381 | 1.000 | 1.000 | 7.500 | 1.683 | 1.000 |
| C2T-RSA16-RX70J062DB | J | 0.620 | 70.00 | 2.381 | 1.381 | 1.000 | 1.000 | 7.500 | 1.683 | 1.000 |
| C2T-RSA20-LX70J062DB | J | 0.620 | 70.00 | 2.631 | 1.381 | 1.250 | 1.250 | 7.500 | 1.933 | 1.250 |
| C2T-RSA20-RX70J062DB | J | 0.620 | 70.00 | 2.631 | 1.381 | 1.250 | 1.250 | 7.500 | 1.933 | 1.250 |
| C2T-RSA12-LX45J020DB | J | 0.200 | 45.00 | 2.362 | 1.612 | 0.750 | 0.750 | 6.000 | 1.013 | 0.750 |
| C2T-RSA12-RX45G016DB | G | 0.160 | 45.00 | 2.099 | 1.349 | 0.750 | 0.750 | 6.000 | 0.973 | 0.750 |
| C2T-RSA12-RX45J020DB | J | 0.200 | 45.00 | 2.362 | 1.612 | 0.750 | 0.750 | 6.000 | 1.013 | 0.750 |
| C2T-RSA16-LX45G016DB | G | 0.160 | 45.00 | 2.349 | 1.349 | 1.000 | 1.000 | 6.000 | 1.223 | 1.000 |
| C2T-RSA16-LX45J020DB | J | 0.200 | 45.00 | 2.612 | 1.612 | 1.000 | 1.000 | 6.000 | 1.263 | 1.000 |
| C2T-RSA16-RX45G016DB | G | 0.160 | 45.00 | 2.349 | 1.349 | 1.000 | 1.000 | 6.000 | 1.223 | 1.000 |
| C2T-RSA16-RX45J020DB | J | 0.200 | 45.00 | 2.612 | 1.612 | 1.000 | 1.000 | 6.000 | 1.263 | 1.000 |
| C2T-RSA20-LX45J020DB | J | 0.200 | 45.00 | 2.862 | 1.612 | 1.250 | 1.250 | 6.000 | 1.513 | 1.250 |
| C2T-RSA20-RX45J020DB | J | 0.200 | 45.00 | 2.862 | 1.612 | 1.250 | 1.250 | 6.000 | 1.513 | 1.250 |
R = Right hand, L = Left hand
