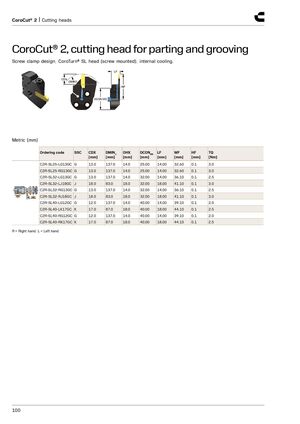

CoroCut® 2, cutting head for parting and grooving
Screw clamp design, CoroTurn® SL head (screw mounted), internal cooling. LF CDX DMIN1 WF
DCON MS
Metric (mm)
| Ordering code | SSC | CDX [mm] | DMIN1 [mm] | OHX [mm] | DCONMS [mm] | LF [mm] | WF [mm] | HF [mm] | TQ [Nm] |
| C2R-SL25-LG13GC | G | 13.0 | 137.0 | 14.0 | 25.00 | 14.00 | 32.60 | 0.1 | 3.0 |
| C2R-SL25-RG13GC | G | 13.0 | 137.0 | 14.0 | 25.00 | 14.00 | 32.60 | 0.1 | 3.0 |
| C2R-SL32-LG13GC | G | 13.0 | 137.0 | 14.0 | 32.00 | 14.00 | 36.10 | 0.1 | 2.5 |
| C2R-SL32-LJ18GC | J | 18.0 | 83.0 | 18.0 | 32.00 | 18.00 | 41.10 | 0.1 | 3.0 |
| C2R-SL32-RG13GC | G | 13.0 | 137.0 | 14.0 | 32.00 | 14.00 | 36.10 | 0.1 | 2.5 |
| C2R-SL32-RJ18GC | J | 18.0 | 83.0 | 18.0 | 32.00 | 18.00 | 41.10 | 0.1 | 3.0 |
| C2R-SL40-LG12GC | G | 12.0 | 137.0 | 14.0 | 40.00 | 14.00 | 39.10 | 0.1 | 2.0 |
| C2R-SL40-LK17GC | K | 17.0 | 87.0 | 18.0 | 40.00 | 18.00 | 44.10 | 0.1 | 2.5 |
| C2R-SL40-RG12GC | G | 12.0 | 137.0 | 14.0 | 40.00 | 14.00 | 39.10 | 0.1 | 2.0 |
| C2R-SL40-RK17GC | K | 17.0 | 87.0 | 18.0 | 40.00 | 18.00 | 44.10 | 0.1 | 2.5 |
R = Right hand, L = Left hand
