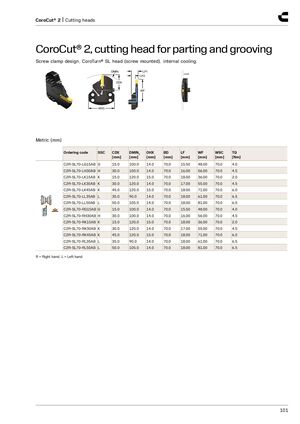

CoroCut® 2, cutting head for parting and grooving
Screw clamp design, CoroTurn® SL head (screw mounted), internal cooling. DMIN LF1 LF2 DAXN CDX WF
WSC
Metric (mm)
| Ordering code SSC | CDX [mm] | DMIN1 [mm] | OHX [mm] | BD [mm] | LF [mm] | WF [mm] | WSC [mm] | TQ [Nm] |
| C2R-SL70-LG15AB G | 15.0 | 100.0 | 14.0 | 70.0 | 15.50 | 48.00 | 70.0 | 4.0 |
| C2R-SL70-LH30AB H | 30.0 | 100.0 | 14.0 | 70.0 | 16.00 | 56.00 | 70.0 | 4.5 |
| C2R-SL70-LK15AB K | 15.0 | 120.0 | 15.0 | 70.0 | 18.00 | 36.00 | 70.0 | 2.0 |
| C2R-SL70-LK30AB K | 30.0 | 120.0 | 14.0 | 70.0 | 17.00 | 55.00 | 70.0 | 4.5 |
| C2R-SL70-LK45AB K | 45.0 | 120.0 | 15.0 | 70.0 | 18.00 | 71.00 | 70.0 | 6.0 |
| C2R-SL70-LL35AB L | 35.0 | 90.0 | 14.0 | 70.0 | 18.00 | 61.00 | 70.0 | 6.5 |
| C2R-SL70-LL50AB L | 50.0 | 105.0 | 14.0 | 70.0 | 18.00 | 81.00 | 70.0 | 6.5 |
| C2R-SL70-RG15AB G | 15.0 | 100.0 | 14.0 | 70.0 | 15.50 | 48.00 | 70.0 | 4.0 |
| C2R-SL70-RH30AB H | 30.0 | 100.0 | 14.0 | 70.0 | 16.00 | 56.00 | 70.0 | 4.5 |
| C2R-SL70-RK15AB K | 15.0 | 120.0 | 15.0 | 70.0 | 18.00 | 36.00 | 70.0 | 2.0 |
| C2R-SL70-RK30AB K | 30.0 | 120.0 | 14.0 | 70.0 | 17.00 | 55.00 | 70.0 | 4.5 |
| C2R-SL70-RK45AB K | 45.0 | 120.0 | 15.0 | 70.0 | 18.00 | 71.00 | 70.0 | 6.0 |
| C2R-SL70-RL35AB L | 35.0 | 90.0 | 14.0 | 70.0 | 18.00 | 61.00 | 70.0 | 6.5 |
| C2R-SL70-RL50AB L | 50.0 | 105.0 | 14.0 | 70.0 | 18.00 | 81.00 | 70.0 | 6.5 |
R = Right hand, L = Left hand
