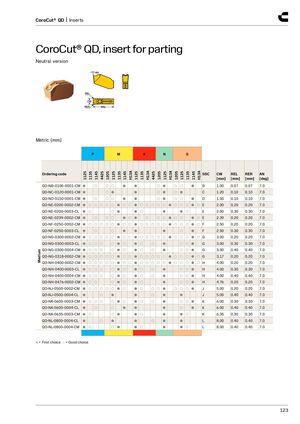

CoroCut® QD, insert for parting
Neutral version
Metric (mm)
| P | M | K | N | S | ||||||||||||
| Ordering code | 1125 1135 1145 4425 | 1205 1125 1135 | 1145 H13A | 1125 | 1135 H13A 4425 1205 | 1125 | H13A 1205 | 1125 | 1135 | 1145 | H13A SSC | CW [mm] | REL [mm] | RER [mm] | AN [deg] | |
| QD-NB-0100-0001-CM | ● ○ | ○○ | ● | ● | ○ | ● | ○ | ○ | ● | B | 1.00 | 0.07 | 0.07 | 7.0 | ||
| QD-NC-0120-0001-CM | ● | ○● | ● | ○ | ● | ○ | ● | C | 1.20 | 0.10 | 0.10 | 7.0 | ||||
| QD-ND-0150-0001-CM | ● ○ | ○○ | ● | ● | ○ | ● | ○ | ○ | ● | D | 1.50 | 0.10 | 0.10 | 7.0 | ||
| QD-NE-0200-0002-CM | ●○○○ | ○○● | ○○ | ● | ○○○○ | ○ | ●○ | ○ | ○ | ● | ○E | 2.00 | 0.20 | 0.20 | 7.0 | |
| QD-NE-0200-0003-CL | ●○ | ○● | ● | ○ | ● | ● | ○ | E | 2.00 | 0.30 | 0.30 | 7.0 | ||||
| QD-NE-0239-0002-CM | ● ○ | ○○ | ●○ | ● | ○ ○ | ○ | ●○ | ○ | ● | ○E | 2.39 | 0.20 | 0.20 | 7.0 | ||
| QD-NF-0250-0002-CM | ●○○○ | ○○● | ○○ | ● | ○○○○ | ○ | ●○ | ○ | ○ | ● | ○F | 2.50 | 0.20 | 0.20 | 7.0 | |
| QD-NF-0250-0003-CL | ● ○ | ○ | ● | ● | ● | ○ | ● | F | 2.50 | 0.30 | 0.30 | 7.0 | ||||
| QD-NG-0300-0002-CM | ●○○○ | ○○● | ○○ | ● | ○○○○ | ○ | ●○ | ○ | ○ | ● | ○G | 3.00 | 0.20 | 0.20 | 7.0 | |
| QD-NG-0300-0003-CL | ●○○○ | ○● | ○ | ● | ○ ○ | ● | ○ | ○ | ● | G | 3.00 | 0.30 | 0.30 | 7.0 | ||
| um QD-NG-0300-0004-CM | ●○○○ | ○● | ○ | ● | ○ ○ | ● | ○ | ○ | ● | G | 3.00 | 0.40 | 0.40 | 7.0 | ||
| edi QD-NG-0318-0002-CM | ●○○○ | ○○● | ○○ | ● | ○○○○ | ○ | ●○ | ○ | ○ | ● | ○G | 3.17 | 0.20 | 0.20 | 7.0 | |
| M QD-NH-0400-0002-CM | ●○○○ | ○○● | ○○ | ● | ○○○○ | ○ | ●○ | ○ | ○ | ● | ○H | 4.00 | 0.20 | 0.20 | 7.0 | |
| QD-NH-0400-0003-CL | ●○○○ | ○● | ○ | ● | ○ ○ | ● | ○ | ○ | ● | H | 4.00 | 0.30 | 0.30 | 7.0 | ||
| QD-NH-0400-0004-CM | ●○○○ | ○● | ○ | ● | ○ ○ | ● | ○ | ○ | ● | H | 4.00 | 0.40 | 0.40 | 7.0 | ||
| QD-NH-0476-0002-CM | ●○○ | ○● | ○ | ● | ○ | ● | ○ | ○ | ● | H | 4.76 | 0.20 | 0.20 | 7.0 | ||
| QD-NJ-0500-0002-CM | ●○○○ | ○○● | ○ | ● | ○ ○○ | ● | ○ | ○ | ○ | ● | J | 5.00 | 0.20 | 0.20 | 7.0 | |
| QD-NJ-0500-0004-CL | ● ○ | ● | ● | ○ | ● | ● | J | 5.00 | 0.40 | 0.40 | 7.0 | |||||
| QD-NK-0600-0003-CM | ●○○○ | ○● | ○ | ● | ○ ○ | ● | ○ | ○ | ● | K | 6.00 | 0.30 | 0.30 | 7.0 | ||
| QD-NK-0600-0004-CL | ● ○ | ○ | ● | ● | ● | ○ | ● | K | 6.00 | 0.40 | 0.40 | 7.0 | ||||
| QD-NK-0635-0003-CM | ●○ | ○● | ● | ○ | ● | ● | ○ | K | 6.35 | 0.30 | 0.30 | 7.0 | ||||
| QD-NL-0800-0004-CL | ● ○ | ● | ● | ○ | ● | ● | L | 8.00 | 0.40 | 0.40 | 7.0 | |||||
| QD-NL-0800-0004-CM | ●○ | ○● | ● | ○ | ● | ● | ○ | L | 8.00 | 0.40 | 0.40 | 7.0 |
- = First choice ○ = Good choice
