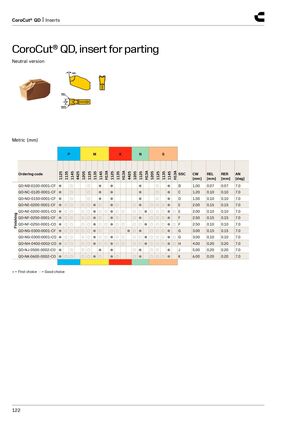

CoroCut® QD, insert for parting
Neutral version
Metric (mm)
| P | M | K | N | S | |||||||||||||
| Ordering code | 1125 1135 1145 | 4425 1205 1125 | 1135 1145 | H13A 1125 | 1135 | H13A 4425 | 1205 1125 | H13A | 1205 | 1125 | 1135 1145 | H13A SSC | CW [mm] | REL [mm] | RER [mm] | AN [deg] | |
| QD-NB-0100-0001-CF | ● ○ | ○ | ● | ● | ● | ○ | ● | B | 1.00 | 0.07 | 0.07 | 7.0 | |||||
| QD-NC-0120-0001-CF | ● ○ | ○ | ● | ● | ● | ○ | ● | C | 1.20 | 0.10 | 0.10 | 7.0 | |||||
| QD-ND-0150-0001-CF | ● ○ | ○ | ● | ● | ● | ○ | ● | D | 1.50 | 0.10 | 0.10 | 7.0 | |||||
| QD-NE-0200-0001-CF | ●○○ | ○○ | ●○ | ● | ○ | ○● | ○ | ○ | ○● | E | 2.00 | 0.15 | 0.15 | 7.0 | |||
| g QD-NE-0200-0001-CO | ●○○ | ○○ | ●○ | ○● | ○ | ○ | ○○ | ● | ○ | ○ | ○● | ○E | 2.00 | 0.10 | 0.10 | 7.0 | |
| shin QD-NF-0250-0001-CF | ●○○ | ○○ | ●○ | ● | ○ | ○● | ○ | ○ | ○● | F | 2.50 | 0.15 | 0.15 | 7.0 | |||
| Fini QD-NF-0250-0001-CO | ●○○ | ○○ | ●○ | ○● | ○ | ○ | ○○ | ● | ○ | ○ | ○● | ○F | 2.50 | 0.10 | 0.10 | 7.0 | |
| QD-NG-0300-0001-CF | ●○○ | ○○○ | ●○ | ○ | ○ | ● | ○● | ○ | ○ | ○● | G | 3.00 | 0.15 | 0.15 | 7.0 | ||
| QD-NG-0300-0001-CO | ●○○ | ○○ | ●○ | ○● | ○ | ○ | ○○ | ● | ○ | ○ | ○● | ○G | 3.00 | 0.10 | 0.10 | 7.0 | |
| QD-NH-0400-0002-CO | ●○○ | ○○ | ●○ | ○● | ○ | ○ | ○○ | ● | ○ | ○ | ○● | ○H | 4.00 | 0.20 | 0.20 | 7.0 | |
| QD-NJ-0500-0002-CO | ● ○ | ○○ | ● | ● | ○● | ○ | ○ | ● | J | 5.00 | 0.20 | 0.20 | 7.0 | ||||
| QD-NK-0600-0002-CO | ●○○ | ○○ | ●○ | ● | ○ | ○● | ○ | ○ | ○● | K | 6.00 | 0.20 | 0.20 | 7.0 |
- = First choice ○ = Good choice
