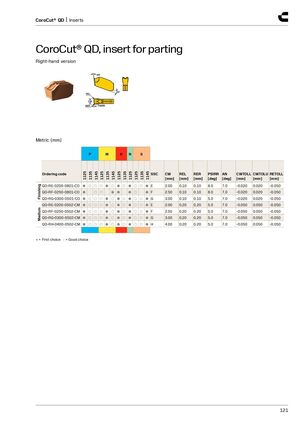

CoroCut® QD, insert for parting
Right-hand version
Metric (mm)
| P | M | K | N | S | ||||||||||||
| Ordering code | 1125 1135 1145 | 1125 1135 | 1145 | 1125 1135 | 1125 | 1125 | 1135 | 1145 SSC | CW [mm] | REL [mm] | RER [mm] | PSIRR [deg] | AN [deg] | CWTOLL [mm] | CWTOL [mm] | U RETOLL [mm] |
| ing QD-RE-0200-0801-CO | ●○○ | ○● | ○ | ●○ | ● | ○ | ○ | ●E | 2.00 | 0.10 | 0.10 | 8.0 | 7.0 | -0.020 | 0.020 | -0.050 |
| nish QD-RF-0250-0801-CO | ● ○ | ○ | ● | ● | ● | ○ | ●F | 2.50 | 0.10 | 0.10 | 8.0 | 7.0 | -0.020 | 0.020 | -0.050 | |
| Fi QD-RG-0300-0501-CO | ●○○ | ○● | ○ | ●○ | ● | ○ | ○ | ●G | 3.00 | 0.10 | 0.10 | 5.0 | 7.0 | -0.020 | 0.020 | -0.050 |
| QD-RE-0200-0502-CM | ●○○ | ○● | ○ | ●○ | ● | ○ | ○ | ●E | 2.00 | 0.20 | 0.20 | 5.0 | 7.0 | -0.050 | 0.050 | -0.050 |
| dium QD-RF-0250-0502-CM | ●○○ | ○● | ○ | ●○ | ● | ○ | ○ | ●F | 2.50 | 0.20 | 0.20 | 5.0 | 7.0 | -0.050 | 0.050 | -0.050 |
| Me QD-RG-0300-0502-CM | ●○○ | ○● | ○ | ●○ | ● | ○ | ○ | ●G | 3.00 | 0.20 | 0.20 | 5.0 | 7.0 | -0.050 | 0.050 | -0.050 |
| QD-RH-0400-0502-CM | ●○○ | ○● | ○ | ●○ | ● | ○ | ○ | ●H | 4.00 | 0.20 | 0.20 | 5.0 | 7.0 | -0.050 | 0.050 | -0.050 |
- = First choice ○ = Good choice
