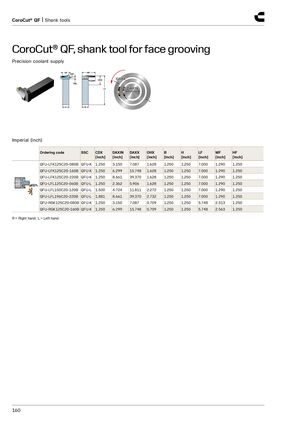

CoroCut® QF, shank tool for face grooving
Precision coolant supply
Imperial (inch)
| Ordering code SSC | CDX [inch] | DAXIN [inch] | DAXX [inch] | OHX [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] |
| QFU-LFK125C20-080B QFU-K | 1.250 | 3.150 | 7.087 | 1.628 | 1.250 | 1.250 | 7.000 | 1.290 | 1.250 |
| QFU-LFK125C20-160B QFU-K | 1.250 | 6.299 | 15.748 | 1.628 | 1.250 | 1.250 | 7.000 | 1.290 | 1.250 |
| QFU-LFK125C20-220B QFU-K | 1.250 | 8.661 | 39.370 | 1.628 | 1.250 | 1.250 | 7.000 | 1.290 | 1.250 |
| QFU-LFL125C20-060B QFU-L | 1.250 | 2.362 | 5.906 | 1.628 | 1.250 | 1.250 | 7.000 | 1.290 | 1.250 |
| QFU-LFL150C20-120B QFU-L | 1.500 | 4.724 | 11.811 | 2.272 | 1.250 | 1.250 | 7.000 | 1.290 | 1.250 |
| QFU-LFL196C20-220B QFU-L | 1.881 | 8.661 | 39.370 | 2.732 | 1.250 | 1.250 | 7.000 | 1.290 | 1.250 |
| QFU-RGK125C20-080B QFU-K | 1.250 | 3.150 | 7.087 | 0.709 | 1.250 | 1.250 | 5.748 | 2.313 | 1.250 |
| QFU-RGK125C20-160B QFU-K | 1.250 | 6.299 | 15.748 | 0.709 | 1.250 | 1.250 | 5.748 | 2.563 | 1.250 |
R = Right hand, L = Left hand
