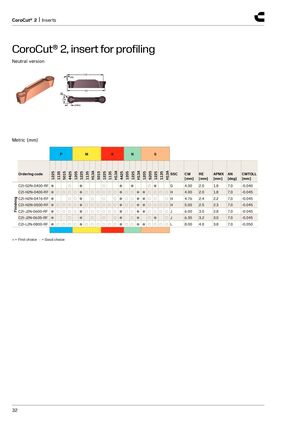

CoroCut® 2, insert for profiling
Neutral version
CDX AN
RE CW
LIG
APMX
Metric (mm)
| P | M | K | N | S | ||||||||||||
| Ordering code | 1225 1135 5015 | 4425 | 1205 1225 | 1135 | H13A 5015 | 1225 | 1135 H13A 4425 | 1205 1225 H13A | 1205 | S205 1225 1135 | H13A SSC | CW [mm] | RE [mm] | APMX [mm] | AN [deg] | CWTOLL [mm] |
| C2I-G2N-0400-RF | ● | ○ | ● | ○ | ● | ● | ○● | G | 4.00 | 2.0 | 1.8 | 7.0 | -0.040 | |||
| C2I-H2N-0400-RF | ●○○ | ○ | ○● | ○ | ○○ | ○ | ○○● | ○○● | ● | ○○○ | ○H | 4.00 | 2.0 | 1.8 | 7.0 | -0.045 |
| ing C2I-H2N-0476-RF | ● | ○ | ○● | ○ | ○ | ○● | ○○● | ● | ○○ | ○H | 4.76 | 2.4 | 2.2 | 7.0 | -0.045 | |
| nish C2I-H2N-0500-RF | ●○○ | ○ | ○● | ○ | ○○ | ○ | ○○● | ○○● | ● | ○○○ | ○H | 5.00 | 2.5 | 2.3 | 7.0 | -0.045 |
| Fi C2I-J2N-0600-RF | ●○○ | ○ | ○● | ○ | ○○ | ○ | ○○● | ○○● | ● | ○○○ | ○J | 6.00 | 3.0 | 2.8 | 7.0 | -0.045 |
| C2I-J2N-0635-RF | ● | ○ | ● | ○ | ○ | ○● | ○● | ○● | ○J | 6.35 | 3.2 | 3.0 | 7.0 | -0.045 | ||
| C2I-L2N-0800-RF | ●○○ | ○ | ○● | ○ | ○○ | ○ | ○○● | ○○● | ● | ○○○ | ○L | 8.00 | 4.0 | 3.8 | 7.0 | -0.050 |
- = First choice ○ = Good choice
