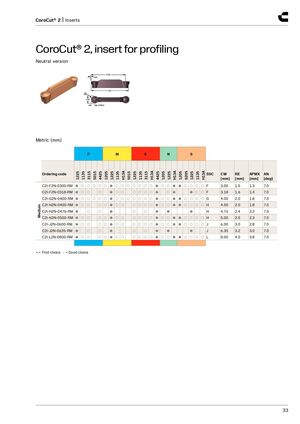

CoroCut® 2, insert for profiling
Neutral version
CDX AN
RE CW
LIG
APMX
Metric (mm)
| P | M | K | N | S | |||||||||||||||||||||
| Ordering code | 1225 | 1135 | 3115 | 5015 4425 | 1205 1225 | 1135 | H13A | 5015 | 1225 | 1135 | 3115 | H13A | 4425 | 1205 | 1225 | H13A | 1205 | S205 1225 1135 | H13A SSC | CW [mm] | RE [mm] | APMX [mm] | AN [deg] | ||
| C2I-F2N-0300-RM | ●○ | ○ | ○○ | ○● | ○ | ○ | ○ | ○ | ○ | ○○ | ● | ○ | ○ | ● | ● | ○○○ | ○F | 3.00 | 1.5 | 1.3 | 7.0 | ||||
| C2I-F2N-0318-RM | ●○ | ○ | ○ | ● | ○ | ○ | ○ | ○ | ○○ | ● | ○ | ● | ●○ | ○F | 3.18 | 1.6 | 1.4 | 7.0 | |||||||
| C2I-G2N-0400-RM | ●○ | ○ | ○○ | ○● | ○ | ○ | ○ | ○ | ○ | ○○ | ● | ○ | ○ | ● | ● | ○○○ | ○G | 4.00 | 2.0 | 1.8 | 7.0 | ||||
| m C2I-H2N-0400-RM | ●○ | ○ | ○ | ○● | ○ | ○ | ○ | ○ | ○○ | ● | ○ | ○ | ● | ● | ○○○ | ○H | 4.00 | 2.0 | 1.8 | 7.0 | |||||
| ediu C2I-H2N-0476-RM | ● | ○ | ○ | ● | ○ | ○ | ● | ● | ● | H | 4.76 | 2.4 | 2.2 | 7.0 | |||||||||||
| M C2I-H2N-0500-RM | ●○ | ○ | ○ | ○● | ○ | ○ | ○ | ○ | ○○ | ● | ○ | ○ | ● | ● | ○○○ | ○H | 5.00 | 2.5 | 2.3 | 7.0 | |||||
| C2I-J2N-0600-RM | ●○ | ○ | ○ | ○● | ○ | ○ | ○ | ○ | ○○ | ● | ○ | ○ | ● | ● | ○○○ | ○J | 6.00 | 3.0 | 2.8 | 7.0 | |||||
| C2I-J2N-0635-RM | ● | ○ | ○ | ● | ○ | ○ | ● | ● | ● | J | 6.35 | 3.2 | 3.0 | 7.0 | |||||||||||
| C2I-L2N-0800-RM | ●○ | ○ | ○ | ○● | ○ | ○ | ○ | ○ | ○○ | ● | ○ | ○ | ● | ● | ○○○ | ○L | 8.00 | 4.0 | 3.8 | 7.0 |
- = First choice ○ = Good choice
