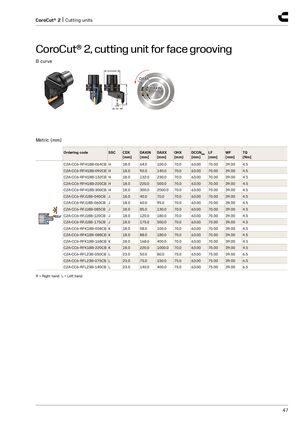

CoroCut® 2 | Cutting units CoroCut® 2, cutting unit for face grooving B curve DCON MS LF CDX WF Metric (mm) Ordering code SSC CDX DAXIN DAXX OHX DCONMS LF WF TQ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [Nm] C2A-CC6-RFH18B-064CB H 18.0 64.0 100.0 70.0 63.00 70.00 39.00 4.5 C2A-CC6-RFH18B-092CB H 18.0 92.0 140.0 70.0 63.00 70.00 39.00 4.5 C2A-CC6-RFH18B-132CB H 18.0 132.0 230.0 70.0 63.00 70.00 39.00 4.5 C2A-CC6-RFH18B-220CB H 18.0 220.0 500.0 70.0 63.00 70.00 39.00 4.5 C2A-CC6-RFH18B-300CB H 18.0 300.0 2000.0 70.0 63.00 70.00 39.00 4.5 C2A-CC6-RFJ18B-040CB J 18.0 40.0 70.0 70.0 63.00 70.00 39.00 4.5 C2A-CC6-RFJ18B-060CB J 18.0 60.0 95.0 70.0 63.00 70.00 39.00 4.5 C2A-CC6-RFJ18B-085CB J 18.0 85.0 130.0 70.0 63.00 70.00 39.00 4.5 C2A-CC6-RFJ18B-120CB J 18.0 120.0 180.0 70.0 63.00 70.00 39.00 4.5 C2A-CC6-RFJ18B-175CB J 18.0 175.0 500.0 70.0 63.00 70.00 39.00 4.5 C2A-CC6-RFK18B-058CB K 18.0 58.0 100.0 70.0 63.00 70.00 39.00 4.5 C2A-CC6-RFK18B-088CB K 18.0 88.0 180.0 70.0 63.00 70.00 39.00 4.5 C2A-CC6-RFK18B-168CB K 18.0 168.0 400.0 70.0 63.00 70.00 39.00 4.5 C2A-CC6-RFK18B-220CB K 18.0 220.0 1000.0 70.0 63.00 70.00 39.00 4.5 C2A-CC6-RFL23B-050CB L 23.0 50.0 80.0 75.0 63.00 75.00 39.00 6.5 C2A-CC6-RFL23B-075CB L 23.0 75.0 150.0 75.0 63.00 75.00 39.00 6.5 C2A-CC6-RFL23B-140CB L 23.0 140.0 400.0 75.0 63.00 75.00 39.00 6.5 R = Right hand, L = Left hand 47
