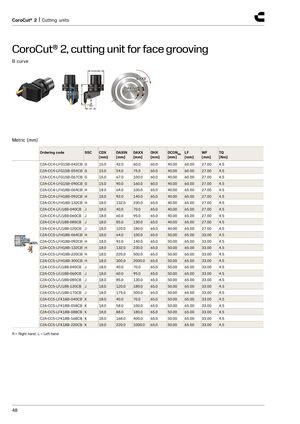

CoroCut® 2, cutting unit for face grooving
B curve
DCON MS
LF
CDX WF
Metric (mm)
| Ordering code | SSC | CDX [mm] | DAXIN [mm] | DAXX [mm] | OHX [mm] | DCONMS [mm] | LF [mm] | WF [mm] | TQ [Nm] |
| C2A-CC4-LFG15B-042CB | G | 15.0 | 42.0 | 60.0 | 60.0 | 40.00 | 60.00 | 27.00 | 4.5 |
| C2A-CC4-LFG15B-054CB | G | 15.0 | 54.0 | 75.0 | 60.0 | 40.00 | 60.00 | 27.00 | 4.5 |
| C2A-CC4-LFG15B-067CB | G | 15.0 | 67.0 | 100.0 | 60.0 | 40.00 | 60.00 | 27.00 | 4.5 |
| C2A-CC4-LFG15B-090CB | G | 15.0 | 90.0 | 160.0 | 60.0 | 40.00 | 60.00 | 27.00 | 4.5 |
| C2A-CC4-LFH18B-064CB | H | 18.0 | 64.0 | 100.0 | 65.0 | 40.00 | 65.00 | 27.00 | 4.5 |
| C2A-CC4-LFH18B-092CB | H | 18.0 | 92.0 | 140.0 | 65.0 | 40.00 | 65.00 | 27.00 | 4.5 |
| C2A-CC4-LFH18B-132CB | H | 18.0 | 132.0 | 230.0 | 65.0 | 40.00 | 65.00 | 27.00 | 4.5 |
| C2A-CC4-LFJ18B-040CB | J | 18.0 | 40.0 | 70.0 | 65.0 | 40.00 | 65.00 | 27.00 | 4.5 |
| C2A-CC4-LFJ18B-060CB | J | 18.0 | 60.0 | 95.0 | 65.0 | 40.00 | 65.00 | 27.00 | 4.5 |
| C2A-CC4-LFJ18B-085CB | J | 18.0 | 85.0 | 130.0 | 65.0 | 40.00 | 65.00 | 27.00 | 4.5 |
| C2A-CC4-LFJ18B-120CB | J | 18.0 | 120.0 | 180.0 | 65.0 | 40.00 | 65.00 | 27.00 | 4.5 |
| C2A-CC5-LFH18B-064CB | H | 18.0 | 64.0 | 100.0 | 65.0 | 50.00 | 65.00 | 33.00 | 4.5 |
| C2A-CC5-LFH18B-092CB | H | 18.0 | 92.0 | 140.0 | 65.0 | 50.00 | 65.00 | 33.00 | 4.5 |
| C2A-CC5-LFH18B-132CB | H | 18.0 | 132.0 | 230.0 | 65.0 | 50.00 | 65.00 | 33.00 | 4.5 |
| C2A-CC5-LFH18B-220CB | H | 18.0 | 220.0 | 500.0 | 65.0 | 50.00 | 65.00 | 33.00 | 4.5 |
| C2A-CC5-LFH18B-300CB | H | 18.0 | 300.0 | 2000.0 | 65.0 | 50.00 | 65.00 | 33.00 | 4.5 |
| C2A-CC5-LFJ18B-040CB | J | 18.0 | 40.0 | 70.0 | 65.0 | 50.00 | 65.00 | 33.00 | 4.5 |
| C2A-CC5-LFJ18B-060CB | J | 18.0 | 60.0 | 95.0 | 65.0 | 50.00 | 65.00 | 33.00 | 4.5 |
| C2A-CC5-LFJ18B-085CB | J | 18.0 | 85.0 | 130.0 | 65.0 | 50.00 | 65.00 | 33.00 | 4.5 |
| C2A-CC5-LFJ18B-120CB | J | 18.0 | 120.0 | 180.0 | 65.0 | 50.00 | 65.00 | 33.00 | 4.5 |
| C2A-CC5-LFJ18B-175CB | J | 18.0 | 175.0 | 500.0 | 65.0 | 50.00 | 65.00 | 33.00 | 4.5 |
| C2A-CC5-LFK18B-040CB | K | 18.0 | 40.0 | 70.0 | 65.0 | 50.00 | 65.00 | 33.00 | 4.5 |
| C2A-CC5-LFK18B-058CB | K | 18.0 | 58.0 | 100.0 | 65.0 | 50.00 | 65.00 | 33.00 | 4.5 |
| C2A-CC5-LFK18B-088CB | K | 18.0 | 88.0 | 180.0 | 65.0 | 50.00 | 65.00 | 33.00 | 4.5 |
| C2A-CC5-LFK18B-168CB | K | 18.0 | 168.0 | 400.0 | 65.0 | 50.00 | 65.00 | 33.00 | 4.5 |
| C2A-CC5-LFK18B-220CB | K | 18.0 | 220.0 | 1000.0 | 65.0 | 50.00 | 65.00 | 33.00 | 4.5 |
R = Right hand, L = Left hand
