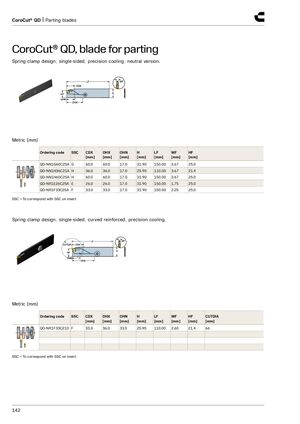

CoroCut® QD, blade for parting
Spring clamp design, single-sided, precision cooling, neutral version.
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] |
| QD-NN1G60C25A | G | 60.0 | 60.0 | 17.0 | 31.90 | 150.00 | 2.67 | 25.0 |
| QD-NN1H36C21A | H | 36.0 | 36.0 | 17.0 | 25.90 | 110.00 | 3.67 | 21.4 |
| QD-NN1H60C25A | H | 60.0 | 60.0 | 17.0 | 31.90 | 150.00 | 3.67 | 25.0 |
| QD-NR1E26C25A | E | 26.0 | 26.0 | 17.0 | 31.90 | 150.00 | 1.75 | 25.0 |
| QD-NR1F33C25A | F | 33.0 | 33.0 | 17.0 | 31.90 | 150.00 | 2.25 | 25.0 |
SSC = To correspond with SSC on insert Spring clamp design, single-sided, curved reinforced, precision cooling.
Metric (mm)
| Ordering code | SSC | CDX | OHX | OHN | H | LF | WF | HF | CUTDIA |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||
| QD-NR1F33C21D | F | 33.0 | 36.0 | 33.0 | 25.90 | 110.00 | 2.60 | 21.4 | 66 |
SSC = To correspond with SSC on insert
