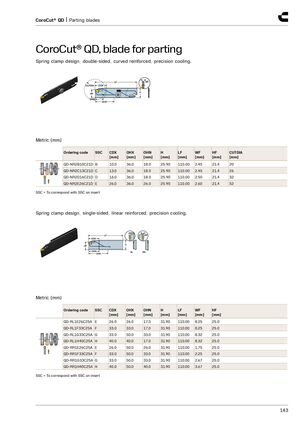

CoroCut® QD, blade for parting
Spring clamp design, double-sided, curved reinforced, precision cooling.
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | CUTDIA [mm] |
| QD-NR2B10C21D | B | 10.0 | 36.0 | 18.0 | 25.90 | 110.00 | 2.45 | 21.4 | 20 |
| QD-NR2C13C21D | C | 13.0 | 36.0 | 18.0 | 25.90 | 110.00 | 2.45 | 21.4 | 26 |
| QD-NR2D16C21D | D | 16.0 | 36.0 | 18.0 | 25.90 | 110.00 | 2.50 | 21.4 | 32 |
| QD-NR2E26C21D | E | 26.0 | 36.0 | 26.0 | 25.90 | 110.00 | 2.60 | 21.4 | 52 |
SSC = To correspond with SSC on insert Spring clamp design, single-sided, linear reinforced, precision cooling.
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] |
| QD-RL1E26C25A | E | 26.0 | 26.0 | 17.0 | 31.90 | 110.00 | 8.25 | 25.0 |
| QD-RL1F33C25A | F | 33.0 | 33.0 | 17.0 | 31.90 | 110.00 | 8.25 | 25.0 |
| QD-RL1G33C25A | G | 33.0 | 50.0 | 33.0 | 31.90 | 110.00 | 8.32 | 25.0 |
| QD-RL1H40C25A | H | 40.0 | 40.0 | 17.0 | 31.90 | 110.00 | 8.32 | 25.0 |
| QD-RR1E26C25A | E | 26.0 | 50.0 | 26.0 | 31.90 | 110.00 | 1.75 | 25.0 |
| QD-RR1F33C25A | F | 33.0 | 50.0 | 33.0 | 31.90 | 110.00 | 2.25 | 25.0 |
| QD-RR1G33C25A | G | 33.0 | 50.0 | 33.0 | 31.90 | 110.00 | 2.67 | 25.0 |
| QD-RR1H40C25A | H | 40.0 | 50.0 | 40.0 | 31.90 | 110.00 | 3.67 | 25.0 |
SSC = To correspond with SSC on insert
