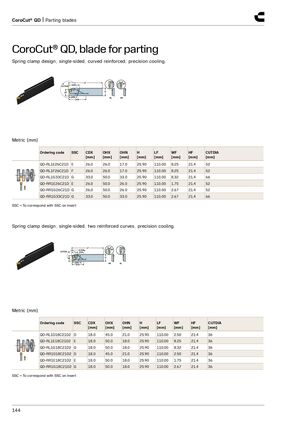

CoroCut® QD, blade for parting
Spring clamp design, single-sided, curved reinforced, precision cooling.
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | CUTDIA [mm] |
| QD-RL1E26C21D | E | 26.0 | 26.0 | 17.0 | 25.90 | 110.00 | 8.25 | 21.4 | 52 |
| QD-RL1F26C21D | F | 26.0 | 26.0 | 17.0 | 25.90 | 110.00 | 8.25 | 21.4 | 52 |
| QD-RL1G33C21D | G | 33.0 | 50.0 | 33.0 | 25.90 | 110.00 | 8.32 | 21.4 | 66 |
| QD-RR1E26C21D | E | 26.0 | 50.0 | 26.0 | 25.90 | 110.00 | 1.75 | 21.4 | 52 |
| QD-RR1G26C21D | G | 26.0 | 50.0 | 26.0 | 25.90 | 110.00 | 2.67 | 21.4 | 52 |
| QD-RR1G33C21D | G | 33.0 | 50.0 | 33.0 | 25.90 | 110.00 | 2.67 | 21.4 | 66 |
SSC = To correspond with SSC on insert Spring clamp design, single-sided, two reinforced curves, precision cooling.
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | CUTDIA [mm] |
| QD-RL1D18C21D2 | D | 18.0 | 45.0 | 21.0 | 25.90 | 110.00 | 2.50 | 21.4 | 36 |
| QD-RL1E18C21D2 | E | 18.0 | 50.0 | 18.0 | 25.90 | 110.00 | 8.25 | 21.4 | 36 |
| QD-RL1G18C21D2 | G | 18.0 | 50.0 | 18.0 | 25.90 | 110.00 | 8.32 | 21.4 | 36 |
| QD-RR1D18C21D2 | D | 18.0 | 45.0 | 21.0 | 25.90 | 110.00 | 2.50 | 21.4 | 36 |
| QD-RR1E18C21D2 | E | 18.0 | 50.0 | 18.0 | 25.90 | 110.00 | 1.75 | 21.4 | 36 |
| QD-RR1G18C21D2 | G | 18.0 | 50.0 | 18.0 | 25.90 | 110.00 | 2.67 | 21.4 | 36 |
SSC = To correspond with SSC on insert
