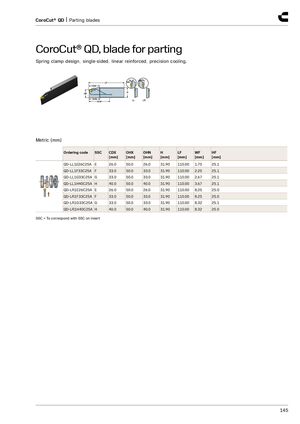

CoroCut® QD, blade for parting
Spring clamp design, single-sided, linear reinforced, precision cooling.
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] |
| QD-LL1E26C25A | E | 26.0 | 50.0 | 26.0 | 31.90 | 110.00 | 1.75 | 25.1 |
| QD-LL1F33C25A | F | 33.0 | 50.0 | 33.0 | 31.90 | 110.00 | 2.25 | 25.1 |
| QD-LL1G33C25A | G | 33.0 | 50.0 | 33.0 | 31.90 | 110.00 | 2.67 | 25.1 |
| QD-LL1H40C25A | H | 40.0 | 50.0 | 40.0 | 31.90 | 110.00 | 3.67 | 25.1 |
| QD-LR1E26C25A | E | 26.0 | 50.0 | 26.0 | 31.90 | 110.00 | 8.25 | 25.0 |
| QD-LR1F33C25A | F | 33.0 | 50.0 | 33.0 | 31.90 | 110.00 | 8.25 | 25.0 |
| QD-LR1G33C25A | G | 33.0 | 50.0 | 33.0 | 31.90 | 110.00 | 8.32 | 25.1 |
| QD-LR1H40C25A | H | 40.0 | 50.0 | 40.0 | 31.90 | 110.00 | 8.32 | 25.0 |
SSC = To correspond with SSC on insert
