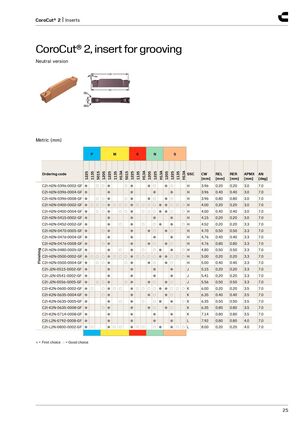

CoroCut® 2, insert for grooving
Neutral version
CDX AN
LIG REL CW RER
Metric (mm)
| P | M | K | N | S | ||||||||
| Ordering code | 1225 | 1135 5015 1205 1225 | 1135 H13A 5015 1225 | 1135 H13A 1205 | 1225 | H13A 1205 1225 | 1135 H13A SSC | CW [mm] | REL [mm] | RER [mm] | APMX [mm] | AN [deg] |
| C2I-H2N-0396-0002-GF | ● | ○○● | ○● | ● | ○ | ●○ | H | 3.96 | 0.20 | 0.20 | 3.0 | 7.0 |
| C2I-H2N-0396-0004-GF | ● | ● | ● | ● | ● | H | 3.96 | 0.40 | 0.40 | 3.0 | 7.0 | |
| C2I-H2N-0396-0008-GF | ● | ○○● | ○● | ● | ○ | ●○ | H | 3.96 | 0.80 | 0.80 | 3.0 | 7.0 |
| C2I-H2N-0400-0002-GF | ● | ○○○● | ○○○● | ○○○ | ○ | ●●○ | ○○H | 4.00 | 0.20 | 0.20 | 3.0 | 7.0 |
| C2I-H2N-0400-0004-GF | ● | ○○● | ○○● | ○○ | ○ | ●●○ | ○H | 4.00 | 0.40 | 0.40 | 3.0 | 7.0 |
| C2I-H2N-0415-0002-GF | ● | ● | ● | ● | ● | H | 4.15 | 0.20 | 0.20 | 3.0 | 7.0 | |
| C2I-H2N-0452-0002-GF | ● | ● | ○ ● | ○ | ○ | ● ● | ○H | 4.52 | 0.20 | 0.20 | 3.3 | 7.0 |
| C2I-H2N-0470-0005-GF | ● | ○● | ● | ● | ○ | ●○ | H | 4.70 | 0.50 | 0.50 | 3.3 | 7.0 |
| C2I-H2N-0476-0004-GF | ● | ● | ● | ● | ● | H | 4.76 | 0.40 | 0.40 | 3.3 | 7.0 | |
| C2I-H2N-0476-0008-GF | ● | ○● | ● | ● | ○ | ●○ | H | 4.76 | 0.80 | 0.80 | 3.3 | 7.0 |
| ing C2I-H2N-0480-0005-GF | ● | ● | ○ ● | ○ | ○ | ● ● | ○H | 4.80 | 0.50 | 0.50 | 3.3 | 7.0 |
| nish C2I-H2N-0500-0002-GF | ● | ○○○● | ○○○● | ○○○ | ○ | ●●○ | ○○H | 5.00 | 0.20 | 0.20 | 3.3 | 7.0 |
| Fi C2I-H2N-0500-0004-GF | ● | ○○● | ○● | ● | ○ | ●○ | H | 5.00 | 0.40 | 0.40 | 3.3 | 7.0 |
| C2I-J2N-0515-0002-GF | ● | ● | ● | ● | ● | J | 5.15 | 0.20 | 0.20 | 3.3 | 7.0 | |
| C2I-J2N-0541-0002-GF | ● | ● | ● | ● | ● | J | 5.41 | 0.20 | 0.20 | 3.3 | 7.0 | |
| C2I-J2N-0556-0005-GF | ● | ○○● | ○● | ● | ○ | ●○ | J | 5.56 | 0.50 | 0.50 | 3.3 | 7.0 |
| C2I-K2N-0600-0002-GF | ● | ○ ○● | ○○ ● | ○○○ | ○ | ●●○ | ○○K | 6.00 | 0.20 | 0.20 | 3.5 | 7.0 |
| C2I-K2N-0635-0004-GF | ● | ○● | ● | ● | ○ | ●○ | K | 6.35 | 0.40 | 0.40 | 3.5 | 7.0 |
| C2I-K2N-0635-0005-GF | ● | ● | ○ ● | ○ | ○ | ● ● | ○K | 6.35 | 0.50 | 0.50 | 3.5 | 7.0 |
| C2I-K2N-0635-0008-GF | ● | ○● | ● | ● | ○ | ●○ | K | 6.35 | 0.80 | 0.80 | 3.5 | 7.0 |
| C2I-K2N-0714-0008-GF | ● | ● | ● | ● | ● | K | 7.14 | 0.80 | 0.80 | 3.5 | 7.0 | |
| C2I-L2N-0792-0008-GF | ● | ● | ● | ● | ● | L | 7.92 | 0.80 | 0.80 | 4.0 | 7.0 | |
| C2I-L2N-0800-0002-GF | ● | ○ ● | ○○ ● | ○○ | ○ | ● ● | ○○L | 8.00 | 0.20 | 0.20 | 4.0 | 7.0 |
- = First choice ○ = Good choice
