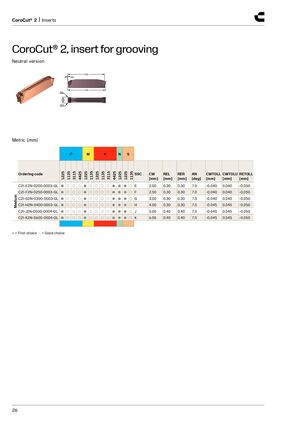

CoroCut® 2, insert for grooving
Neutral version
CDX AN
LIG REL CW RER
Metric (mm)
| P | M | K N | S | ||||||||||||
| Ordering code | 1225 1135 | 3115 | 4425 1225 1135 | 1225 | 1135 | 3115 4425 1225 1225 | 1135 SSC | CW [mm] | REL [mm] | RER [mm] | AN [deg] | CWTOLL [mm] | CWTOL [mm] | U RETOLL [mm] | |
| C2I-E2N-0200-0003-GL | ●○ | ○ | ○●○ | ○ | ○ | ○●●● | ○E | 2.00 | 0.30 | 0.30 | 7.0 | -0.040 | 0.040 | -0.050 | |
| C2I-F2N-0250-0003-GL | ●○ | ○ | ○●○ | ○ | ○ | ○●●● | ○F | 2.50 | 0.30 | 0.30 | 7.0 | -0.040 | 0.040 | -0.050 | |
| dium C2I-G2N-0300-0003-GL | ●○ | ○ | ○●○ | ○ | ○ | ○●●● | ○G | 3.00 | 0.30 | 0.30 | 7.0 | -0.040 | 0.040 | -0.050 | |
| Me C2I-H2N-0400-0003-GL | ●○ | ○ | ○●○ | ○ | ○ | ○●●● | ○H | 4.00 | 0.30 | 0.30 | 7.0 | -0.045 | 0.045 | -0.050 | |
| C2I-J2N-0500-0004-GL | ●○ | ○ | ○●○ | ○ | ○ | ○●●● | ○J | 5.00 | 0.40 | 0.40 | 7.0 | -0.045 | 0.045 | -0.050 | |
| C2I-K2N-0600-0004-GL | ●○ | ○ | ○●○ | ○ | ○ | ○●●● | ○K | 6.00 | 0.40 | 0.40 | 7.0 | -0.045 | 0.045 | -0.050 |
- = First choice ○ = Good choice
