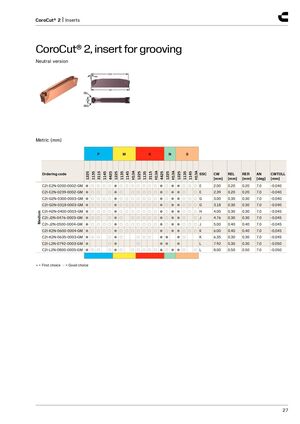

CoroCut® 2, insert for grooving
Neutral version
CDX AN
LIG REL CW RER
Metric (mm)
| P | M | K | N | S | |||||||||
| Ordering code 1225 | 1135 3115 | 1145 4425 | 1225 1135 1145 | H13A 1225 | 1135 3115 | H13A 4425 1225 H13A 1225 | 1135 1145 | H13A SSC | CW [mm] | REL [mm] | RER [mm] | AN [deg] | CWTOLL [mm] |
| C2I-E2N-0200-0002-GM ● | ○○ | ○○ | ●○○ | ○○ | ○○ | ○●○●● | ○○ | ○E | 2.00 | 0.20 | 0.20 | 7.0 | -0.040 |
| C2I-E2N-0239-0002-GM ● | ○○ | ○ | ●○ | ○○ | ○○ | ○●○●● | ○ | ○E | 2.39 | 0.20 | 0.20 | 7.0 | -0.040 |
| C2I-G2N-0300-0003-GM ● | ○○ | ○○ | ●○○ | ○○ | ○○ | ○●○●● | ○○ | ○G | 3.00 | 0.30 | 0.30 | 7.0 | -0.040 |
| C2I-G2N-0318-0003-GM ● | ○○ | ○○ | ●○○ | ○○ | ○○ | ○●○●● | ○○ | ○G | 3.18 | 0.30 | 0.30 | 7.0 | -0.040 |
| um C2I-H2N-0400-0003-GM ● | ○○ | ○○ | ●○○ | ○○ | ○○ | ○●○●● | ○○ | ○H | 4.00 | 0.30 | 0.30 | 7.0 | -0.045 |
| edi C2I-J2N-0476-0003-GM ● | ○○ | ○ | ●○ | ○○ | ○○ | ○●○●● | ○ | ○J | 4.76 | 0.30 | 0.30 | 7.0 | -0.045 |
| M C2I-J2N-0500-0004-GM ● | ○○ | ○○ | ●○○ | ○○ | ○○ | ○●○●● | ○○ | ○J | 5.00 | 0.40 | 0.40 | 7.0 | -0.045 |
| C2I-K2N-0600-0004-GM ● | ○○ | ○○ | ●○○ | ○○ | ○○ | ○●○●● | ○○ | ○K | 6.00 | 0.40 | 0.40 | 7.0 | -0.045 |
| C2I-K2N-0635-0003-GM ● | ○○ | ○ | ●○ | ○ | ○○ | ●● ● | ○ | K | 6.35 | 0.30 | 0.30 | 7.0 | -0.045 |
| C2I-L2N-0792-0003-GM ● | ○ | ● | ○ | ●● ● | L | 7.92 | 0.30 | 0.30 | 7.0 | -0.050 | |||
| C2I-L2N-0800-0005-GM ● | ○○ | ○ | ●○ | ○○ | ○○ | ○●○●● | ○ | ○L | 8.00 | 0.50 | 0.50 | 7.0 | -0.050 |
- = First choice ○ = Good choice
