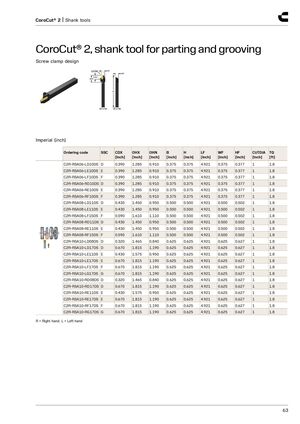

CoroCut® 2, shank tool for parting and grooving
Screw clamp design
CUTDIA HF WF CDX OHX
LF
H B
Imperial (inch)
| Ordering code | SSC | CDX [inch] | OHX [inch] | OHN [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] | CUTDIA [inch] | TQ [ft] |
| C2R-RSA06-LD10DS | D | 0.390 | 1.285 | 0.910 | 0.375 | 0.375 | 4.921 | 0.375 | 0.377 | 1 | 1.8 |
| C2R-RSA06-LE10DS | E | 0.390 | 1.285 | 0.910 | 0.375 | 0.375 | 4.921 | 0.375 | 0.377 | 1 | 1.8 |
| C2R-RSA06-LF10DS | F | 0.390 | 1.285 | 0.910 | 0.375 | 0.375 | 4.921 | 0.375 | 0.377 | 1 | 1.8 |
| C2R-RSA06-RD10DS | D | 0.390 | 1.285 | 0.910 | 0.375 | 0.375 | 4.921 | 0.375 | 0.377 | 1 | 1.8 |
| C2R-RSA06-RE10DS | E | 0.390 | 1.285 | 0.910 | 0.375 | 0.375 | 4.921 | 0.375 | 0.377 | 1 | 1.8 |
| C2R-RSA06-RF10DS | F | 0.390 | 1.285 | 0.910 | 0.375 | 0.375 | 4.921 | 0.375 | 0.377 | 1 | 1.8 |
| C2R-RSA08-LD11DS | D | 0.430 | 1.450 | 0.950 | 0.500 | 0.500 | 4.921 | 0.500 | 0.502 | 1 | 1.8 |
| C2R-RSA08-LE11DS | E | 0.430 | 1.450 | 0.950 | 0.500 | 0.500 | 4.921 | 0.500 | 0.502 | 1 | 1.8 |
| C2R-RSA08-LF15DS | F | 0.590 | 1.610 | 1.110 | 0.500 | 0.500 | 4.921 | 0.500 | 0.502 | 1 | 1.8 |
| C2R-RSA08-RD11DS | D | 0.430 | 1.450 | 0.950 | 0.500 | 0.500 | 4.921 | 0.500 | 0.502 | 1 | 1.8 |
| C2R-RSA08-RE11DS | E | 0.430 | 1.450 | 0.950 | 0.500 | 0.500 | 4.921 | 0.500 | 0.502 | 1 | 1.8 |
| C2R-RSA08-RF15DS | F | 0.590 | 1.610 | 1.110 | 0.500 | 0.500 | 4.921 | 0.500 | 0.502 | 1 | 1.8 |
| C2R-RSA10-LD08DS | D | 0.320 | 1.465 | 0.840 | 0.625 | 0.625 | 4.921 | 0.625 | 0.627 | 1 | 1.8 |
| C2R-RSA10-LD17DS | D | 0.670 | 1.815 | 1.190 | 0.625 | 0.625 | 4.921 | 0.625 | 0.627 | 1 | 1.8 |
| C2R-RSA10-LE11DS | E | 0.430 | 1.575 | 0.950 | 0.625 | 0.625 | 4.921 | 0.625 | 0.627 | 1 | 1.8 |
| C2R-RSA10-LE17DS | E | 0.670 | 1.815 | 1.190 | 0.625 | 0.625 | 4.921 | 0.625 | 0.627 | 1 | 1.8 |
| C2R-RSA10-LF17DS | F | 0.670 | 1.815 | 1.190 | 0.625 | 0.625 | 4.921 | 0.625 | 0.627 | 1 | 1.8 |
| C2R-RSA10-LG17DS | G | 0.670 | 1.815 | 1.190 | 0.625 | 0.625 | 4.921 | 0.625 | 0.627 | 1 | 1.8 |
| C2R-RSA10-RD08DS | D | 0.320 | 1.465 | 0.840 | 0.625 | 0.625 | 4.921 | 0.625 | 0.627 | 1 | 1.8 |
| C2R-RSA10-RD17DS | D | 0.670 | 1.815 | 1.190 | 0.625 | 0.625 | 4.921 | 0.625 | 0.627 | 1 | 1.8 |
| C2R-RSA10-RE11DS | E | 0.430 | 1.575 | 0.950 | 0.625 | 0.625 | 4.921 | 0.625 | 0.627 | 1 | 1.8 |
| C2R-RSA10-RE17DS | E | 0.670 | 1.815 | 1.190 | 0.625 | 0.625 | 4.921 | 0.625 | 0.627 | 1 | 1.8 |
| C2R-RSA10-RF17DS | F | 0.670 | 1.815 | 1.190 | 0.625 | 0.625 | 4.921 | 0.625 | 0.627 | 1 | 1.8 |
| C2R-RSA10-RG17DS | G | 0.670 | 1.815 | 1.190 | 0.625 | 0.625 | 4.921 | 0.625 | 0.627 | 1 | 1.8 |
R = Right hand, L = Left hand
