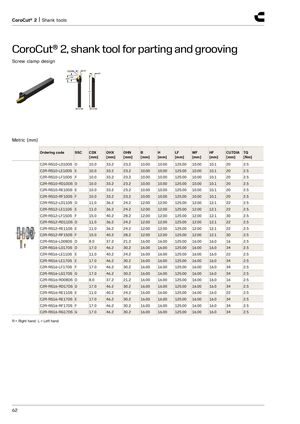

CoroCut® 2, shank tool for parting and grooving
Screw clamp design
CUTDIA HF WF CDX OHX
LF
H B
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | CUTDIA [mm] | TQ [Nm] |
| C2R-RS10-LD10DS | D | 10.0 | 33.2 | 23.2 | 10.00 | 10.00 | 125.00 | 10.00 | 10.1 | 20 | 2.5 |
| C2R-RS10-LE10DS | E | 10.0 | 33.2 | 23.2 | 10.00 | 10.00 | 125.00 | 10.00 | 10.1 | 20 | 2.5 |
| C2R-RS10-LF10DS | F | 10.0 | 33.2 | 23.2 | 10.00 | 10.00 | 125.00 | 10.00 | 10.1 | 20 | 2.5 |
| C2R-RS10-RD10DS | D | 10.0 | 33.2 | 23.2 | 10.00 | 10.00 | 125.00 | 10.00 | 10.1 | 20 | 2.5 |
| C2R-RS10-RE10DS | E | 10.0 | 33.2 | 23.2 | 10.00 | 10.00 | 125.00 | 10.00 | 10.1 | 20 | 2.5 |
| C2R-RS10-RF10DS | F | 10.0 | 33.2 | 23.2 | 10.00 | 10.00 | 125.00 | 10.00 | 10.1 | 20 | 2.5 |
| C2R-RS12-LD11DS | D | 11.0 | 36.2 | 24.2 | 12.00 | 12.00 | 125.00 | 12.00 | 12.1 | 22 | 2.5 |
| C2R-RS12-LE11DS | E | 11.0 | 36.2 | 24.2 | 12.00 | 12.00 | 125.00 | 12.00 | 12.1 | 22 | 2.5 |
| C2R-RS12-LF15DS | F | 15.0 | 40.2 | 28.2 | 12.00 | 12.00 | 125.00 | 12.00 | 12.1 | 30 | 2.5 |
| C2R-RS12-RD11DS | D | 11.0 | 36.2 | 24.2 | 12.00 | 12.00 | 125.00 | 12.00 | 12.1 | 22 | 2.5 |
| C2R-RS12-RE11DS | E | 11.0 | 36.2 | 24.2 | 12.00 | 12.00 | 125.00 | 12.00 | 12.1 | 22 | 2.5 |
| C2R-RS12-RF15DS | F | 15.0 | 40.2 | 28.2 | 12.00 | 12.00 | 125.00 | 12.00 | 12.1 | 30 | 2.5 |
| C2R-RS16-LD08DS | D | 8.0 | 37.2 | 21.2 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 16 | 2.5 |
| C2R-RS16-LD17DS | D | 17.0 | 46.2 | 30.2 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 34 | 2.5 |
| C2R-RS16-LE11DS | E | 11.0 | 40.2 | 24.2 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 22 | 2.5 |
| C2R-RS16-LE17DS | E | 17.0 | 46.2 | 30.2 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 34 | 2.5 |
| C2R-RS16-LF17DS | F | 17.0 | 46.2 | 30.2 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 34 | 2.5 |
| C2R-RS16-LG17DS | G | 17.0 | 46.2 | 30.2 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 34 | 2.5 |
| C2R-RS16-RD08DS | D | 8.0 | 37.2 | 21.2 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 16 | 2.5 |
| C2R-RS16-RD17DS | D | 17.0 | 46.2 | 30.2 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 34 | 2.5 |
| C2R-RS16-RE11DS | E | 11.0 | 40.2 | 24.2 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 22 | 2.5 |
| C2R-RS16-RE17DS | E | 17.0 | 46.2 | 30.2 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 34 | 2.5 |
| C2R-RS16-RF17DS | F | 17.0 | 46.2 | 30.2 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 34 | 2.5 |
| C2R-RS16-RG17DS | G | 17.0 | 46.2 | 30.2 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 34 | 2.5 |
R = Right hand, L = Left hand
