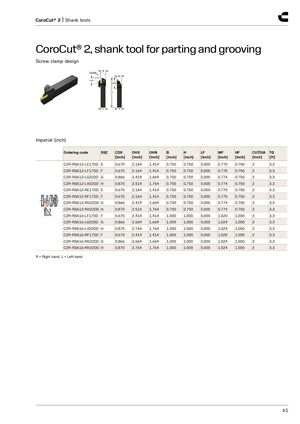

CoroCut® 2, shank tool for parting and grooving
Screw clamp design
HF CUTDIA WF CDX OHX
LF
H B
Imperial (inch)
| Ordering code SSC | CDX [inch] | OHX [inch] | OHN [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] | CUTDIA [inch] | TQ [ft] |
| C2R-RSA12-LE17DD E | 0.670 | 2.164 | 1.414 | 0.750 | 0.750 | 5.000 | 0.770 | 0.750 | 2 | 3.3 |
| C2R-RSA12-LF17DD F | 0.670 | 2.164 | 1.414 | 0.750 | 0.750 | 5.000 | 0.770 | 0.750 | 2 | 3.3 |
| C2R-RSA12-LG22DD G | 0.866 | 2.419 | 1.669 | 0.750 | 0.750 | 5.000 | 0.774 | 0.750 | 2 | 3.3 |
| C2R-RSA12-LH22DD H | 0.870 | 2.514 | 1.764 | 0.750 | 0.750 | 5.000 | 0.774 | 0.750 | 2 | 3.3 |
| C2R-RSA12-RE17DD E | 0.670 | 2.164 | 1.414 | 0.750 | 0.750 | 5.000 | 0.770 | 0.750 | 2 | 3.3 |
| C2R-RSA12-RF17DD F | 0.670 | 2.164 | 1.414 | 0.750 | 0.750 | 5.000 | 0.770 | 0.750 | 2 | 3.3 |
| C2R-RSA12-RG22DD G | 0.866 | 2.419 | 1.669 | 0.750 | 0.750 | 5.000 | 0.774 | 0.750 | 2 | 3.3 |
| C2R-RSA12-RH22DD H | 0.870 | 2.514 | 1.764 | 0.750 | 0.750 | 5.000 | 0.774 | 0.750 | 2 | 3.3 |
| C2R-RSA16-LF17DD F | 0.670 | 2.414 | 1.414 | 1.000 | 1.000 | 5.000 | 1.020 | 1.000 | 2 | 3.3 |
| C2R-RSA16-LG22DD G | 0.866 | 2.669 | 1.669 | 1.000 | 1.000 | 5.000 | 1.024 | 1.000 | 2 | 3.3 |
| C2R-RSA16-LH22DD H | 0.870 | 2.764 | 1.764 | 1.000 | 1.000 | 5.000 | 1.024 | 1.000 | 2 | 3.3 |
| C2R-RSA16-RF17DD F | 0.670 | 2.414 | 1.414 | 1.000 | 1.000 | 5.000 | 1.020 | 1.000 | 2 | 3.3 |
| C2R-RSA16-RG22DD G | 0.866 | 2.669 | 1.669 | 1.000 | 1.000 | 5.000 | 1.024 | 1.000 | 2 | 3.3 |
| C2R-RSA16-RH22DD H | 0.870 | 2.764 | 1.764 | 1.000 | 1.000 | 5.000 | 1.024 | 1.000 | 2 | 3.3 |
R = Right hand, L = Left hand
