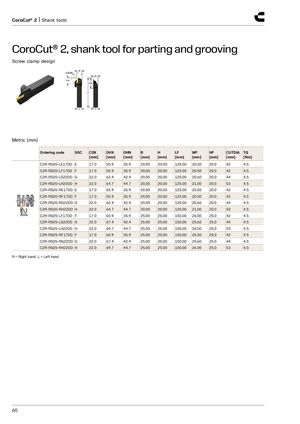

CoroCut® 2, shank tool for parting and grooving
Screw clamp design
HF CUTDIA WF CDX OHX
LF
H B
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | CUTDIA [mm] | TQ [Nm] |
| C2R-RS20-LE17DD | E | 17.0 | 55.9 | 35.9 | 20.00 | 20.00 | 125.00 | 20.50 | 20.0 | 42 | 4.5 |
| C2R-RS20-LF17DD | F | 17.0 | 55.9 | 35.9 | 20.00 | 20.00 | 125.00 | 20.50 | 20.0 | 42 | 4.5 |
| C2R-RS20-LG22DD | G | 22.0 | 62.4 | 42.4 | 20.00 | 20.00 | 125.00 | 20.60 | 20.0 | 44 | 4.5 |
| C2R-RS20-LH22DD | H | 22.0 | 64.7 | 44.7 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 53 | 4.5 |
| C2R-RS20-RE17DD | E | 17.0 | 55.9 | 35.9 | 20.00 | 20.00 | 125.00 | 20.50 | 20.0 | 42 | 4.5 |
| C2R-RS20-RF17DD | F | 17.0 | 55.9 | 35.9 | 20.00 | 20.00 | 125.00 | 20.50 | 20.0 | 42 | 4.5 |
| C2R-RS20-RG22DD | G | 22.0 | 62.4 | 42.4 | 20.00 | 20.00 | 125.00 | 20.60 | 20.0 | 44 | 4.5 |
| C2R-RS20-RH22DD | H | 22.0 | 64.7 | 44.7 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 53 | 4.5 |
| C2R-RS25-LF17DD | F | 17.0 | 60.9 | 35.9 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 42 | 4.5 |
| C2R-RS25-LG22DD | G | 22.0 | 67.4 | 42.4 | 25.00 | 25.00 | 150.00 | 25.60 | 25.0 | 44 | 4.5 |
| C2R-RS25-LH22DD | H | 22.0 | 69.7 | 44.7 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 53 | 4.5 |
| C2R-RS25-RF17DD | F | 17.0 | 60.9 | 35.9 | 25.00 | 25.00 | 150.00 | 25.50 | 25.0 | 42 | 4.5 |
| C2R-RS25-RG22DD | G | 22.0 | 67.4 | 42.4 | 25.00 | 25.00 | 150.00 | 25.60 | 25.0 | 44 | 4.5 |
| C2R-RS25-RH22DD | H | 22.0 | 69.7 | 44.7 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 53 | 4.5 |
R = Right hand, L = Left hand
