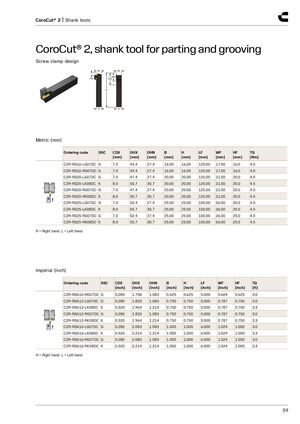

CoroCut® 2, shank tool for parting and grooving
Screw clamp design
HF WF OHN CDX OHX
LF
H B
Metric (mm)
| Ordering code SSC | CDX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | TQ [Nm] |
| C2R-RS16-LG07DC G | 7.0 | 43.4 | 27.4 | 16.00 | 16.00 | 125.00 | 17.00 | 16.0 | 4.0 |
| C2R-RS16-RG07DC G | 7.0 | 43.4 | 27.4 | 16.00 | 16.00 | 125.00 | 17.00 | 16.0 | 4.0 |
| C2R-RS20-LG07DC G | 7.0 | 47.4 | 27.4 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 4.0 |
| C2R-RS20-LK08DC K | 8.0 | 50.7 | 30.7 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 4.5 |
| C2R-RS20-RG07DC G | 7.0 | 47.4 | 27.4 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 4.0 |
| C2R-RS20-RK08DC K | 8.0 | 50.7 | 30.7 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 4.5 |
| C2R-RS25-LG07DC G | 7.0 | 52.4 | 27.4 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.0 |
| C2R-RS25-LK08DC K | 8.0 | 55.7 | 30.7 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.5 |
| C2R-RS25-RG07DC G | 7.0 | 52.4 | 27.4 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.0 |
| C2R-RS25-RK08DC K | 8.0 | 55.7 | 30.7 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.5 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | SSC | CDX [inch] | OHX [inch] | OHN [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] | TQ [ft] |
| C2R-RSA10-RG07DC | G | 0.280 | 1.708 | 1.083 | 0.625 | 0.625 | 5.000 | 0.669 | 0.625 | 3.0 |
| C2R-RSA12-LG07DC | G | 0.280 | 1.833 | 1.083 | 0.750 | 0.750 | 5.000 | 0.787 | 0.750 | 3.0 |
| C2R-RSA12-LK08DC | K | 0.320 | 1.964 | 1.214 | 0.750 | 0.750 | 5.000 | 0.787 | 0.750 | 3.3 |
| C2R-RSA12-RG07DC | G | 0.280 | 1.833 | 1.083 | 0.750 | 0.750 | 5.000 | 0.787 | 0.750 | 3.0 |
| C2R-RSA12-RK08DC | K | 0.320 | 1.964 | 1.214 | 0.750 | 0.750 | 5.000 | 0.787 | 0.750 | 3.3 |
| C2R-RSA16-LG07DC | G | 0.280 | 2.083 | 1.083 | 1.000 | 1.000 | 6.000 | 1.024 | 1.000 | 3.0 |
| C2R-RSA16-LK08DC | K | 0.320 | 2.214 | 1.214 | 1.000 | 1.000 | 6.000 | 1.024 | 1.000 | 3.3 |
| C2R-RSA16-RG07DC | G | 0.280 | 2.083 | 1.083 | 1.000 | 1.000 | 6.000 | 1.024 | 1.000 | 3.0 |
| C2R-RSA16-RK08DC | K | 0.320 | 2.214 | 1.214 | 1.000 | 1.000 | 6.000 | 1.024 | 1.000 | 3.3 |
R = Right hand, L = Left hand
