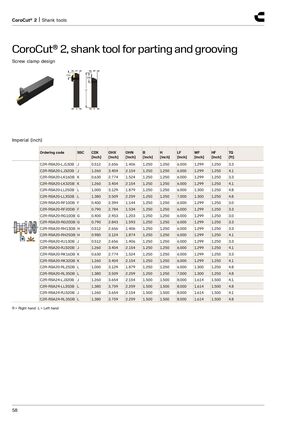

CoroCut® 2, shank tool for parting and grooving
Screw clamp design
HF WF CDX OHX
LF
H B
Imperial (inch)
| Ordering code | SSC | CDX [inch] | OHX [inch] | OHN [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] | TQ [ft] |
| C2R-RSA20-LJ13DB | J | 0.512 | 2.656 | 1.406 | 1.250 | 1.250 | 6.000 | 1.299 | 1.250 | 3.3 |
| C2R-RSA20-LJ32DB | J | 1.260 | 3.404 | 2.154 | 1.250 | 1.250 | 6.000 | 1.299 | 1.250 | 4.1 |
| C2R-RSA20-LK16DB | K | 0.630 | 2.774 | 1.524 | 1.250 | 1.250 | 6.000 | 1.299 | 1.250 | 3.3 |
| C2R-RSA20-LK32DB | K | 1.260 | 3.404 | 2.154 | 1.250 | 1.250 | 6.000 | 1.299 | 1.250 | 4.1 |
| C2R-RSA20-LL25DB | L | 1.000 | 3.129 | 1.879 | 1.250 | 1.250 | 6.000 | 1.300 | 1.250 | 4.8 |
| C2R-RSA20-LL35DB | L | 1.380 | 3.509 | 2.259 | 1.250 | 1.250 | 7.000 | 1.300 | 1.250 | 4.8 |
| C2R-RSA20-RF10DB | F | 0.400 | 2.394 | 1.144 | 1.250 | 1.250 | 6.000 | 1.299 | 1.250 | 3.0 |
| C2R-RSA20-RF20DB | F | 0.790 | 2.784 | 1.534 | 1.250 | 1.250 | 6.000 | 1.299 | 1.250 | 3.3 |
| C2R-RSA20-RG10DB | G | 0.400 | 2.453 | 1.203 | 1.250 | 1.250 | 6.000 | 1.299 | 1.250 | 3.0 |
| C2R-RSA20-RG20DB | G | 0.790 | 2.843 | 1.593 | 1.250 | 1.250 | 6.000 | 1.299 | 1.250 | 3.3 |
| C2R-RSA20-RH13DB | H | 0.512 | 2.656 | 1.406 | 1.250 | 1.250 | 6.000 | 1.299 | 1.250 | 3.3 |
| C2R-RSA20-RH25DB | H | 0.980 | 3.124 | 1.874 | 1.250 | 1.250 | 6.000 | 1.299 | 1.250 | 4.1 |
| C2R-RSA20-RJ13DB | J | 0.512 | 2.656 | 1.406 | 1.250 | 1.250 | 6.000 | 1.299 | 1.250 | 3.3 |
| C2R-RSA20-RJ32DB | J | 1.260 | 3.404 | 2.154 | 1.250 | 1.250 | 6.000 | 1.299 | 1.250 | 4.1 |
| C2R-RSA20-RK16DB | K | 0.630 | 2.774 | 1.524 | 1.250 | 1.250 | 6.000 | 1.299 | 1.250 | 3.3 |
| C2R-RSA20-RK32DB | K | 1.260 | 3.404 | 2.154 | 1.250 | 1.250 | 6.000 | 1.299 | 1.250 | 4.1 |
| C2R-RSA20-RL25DB | L | 1.000 | 3.129 | 1.879 | 1.250 | 1.250 | 6.000 | 1.300 | 1.250 | 4.8 |
| C2R-RSA20-RL35DB | L | 1.380 | 3.509 | 2.259 | 1.250 | 1.250 | 7.000 | 1.300 | 1.250 | 4.8 |
| C2R-RSA24-LJ32DB | J | 1.260 | 3.654 | 2.154 | 1.500 | 1.500 | 8.000 | 1.614 | 1.500 | 4.1 |
| C2R-RSA24-LL35DB | L | 1.380 | 3.759 | 2.259 | 1.500 | 1.500 | 8.000 | 1.614 | 1.500 | 4.8 |
| C2R-RSA24-RJ32DB | J | 1.260 | 3.654 | 2.154 | 1.500 | 1.500 | 8.000 | 1.614 | 1.500 | 4.1 |
| C2R-RSA24-RL35DB | L | 1.380 | 3.759 | 2.259 | 1.500 | 1.500 | 8.000 | 1.614 | 1.500 | 4.8 |
R = Right hand, L = Left hand
