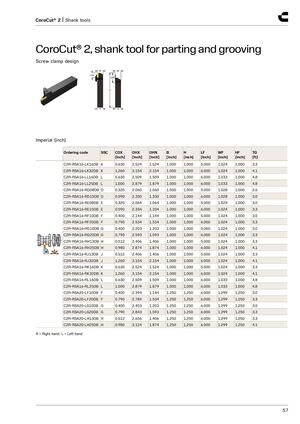

CoroCut® 2, shank tool for parting and grooving
Screw clamp design
HF WF CDX OHX
LF
H B
Imperial (inch)
| Ordering code SSC | CDX [inch] | OHX [inch] | OHN [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] | TQ [ft] |
| C2R-RSA16-LK16DB K | 0.630 | 2.524 | 1.524 | 1.000 | 1.000 | 5.000 | 1.024 | 1.000 | 3.3 |
| C2R-RSA16-LK32DB K | 1.260 | 3.154 | 2.154 | 1.000 | 1.000 | 6.000 | 1.024 | 1.000 | 4.1 |
| C2R-RSA16-LL16DB L | 0.630 | 2.509 | 1.509 | 1.000 | 1.000 | 6.000 | 1.033 | 1.000 | 4.8 |
| C2R-RSA16-LL25DB L | 1.000 | 2.879 | 1.879 | 1.000 | 1.000 | 6.000 | 1.033 | 1.000 | 4.8 |
| C2R-RSA16-RD08DB D | 0.320 | 2.060 | 1.060 | 1.000 | 1.000 | 5.000 | 1.028 | 1.000 | 2.6 |
| C2R-RSA16-RD15DB D | 0.590 | 2.330 | 1.330 | 1.000 | 1.000 | 6.000 | 1.028 | 1.000 | 3.0 |
| C2R-RSA16-RE08DB E | 0.320 | 2.064 | 1.064 | 1.000 | 1.000 | 5.000 | 1.024 | 1.000 | 3.0 |
| C2R-RSA16-RE15DB E | 0.590 | 2.334 | 1.334 | 1.000 | 1.000 | 6.000 | 1.024 | 1.000 | 3.3 |
| C2R-RSA16-RF10DB F | 0.400 | 2.144 | 1.144 | 1.000 | 1.000 | 5.000 | 1.024 | 1.000 | 3.0 |
| C2R-RSA16-RF20DB F | 0.790 | 2.534 | 1.534 | 1.000 | 1.000 | 6.000 | 1.024 | 1.000 | 3.3 |
| C2R-RSA16-RG10DB G | 0.400 | 2.203 | 1.203 | 1.000 | 1.000 | 5.000 | 1.024 | 1.000 | 3.0 |
| C2R-RSA16-RG20DB G | 0.790 | 2.593 | 1.593 | 1.000 | 1.000 | 6.000 | 1.024 | 1.000 | 3.3 |
| C2R-RSA16-RH13DB H | 0.512 | 2.406 | 1.406 | 1.000 | 1.000 | 5.000 | 1.024 | 1.000 | 3.3 |
| C2R-RSA16-RH25DB H | 0.980 | 2.874 | 1.874 | 1.000 | 1.000 | 6.000 | 1.024 | 1.000 | 4.1 |
| C2R-RSA16-RJ13DB J | 0.512 | 2.406 | 1.406 | 1.000 | 1.000 | 5.000 | 1.024 | 1.000 | 3.3 |
| C2R-RSA16-RJ32DB J | 1.260 | 3.154 | 2.154 | 1.000 | 1.000 | 6.000 | 1.024 | 1.000 | 4.1 |
| C2R-RSA16-RK16DB K | 0.630 | 2.524 | 1.524 | 1.000 | 1.000 | 5.000 | 1.024 | 1.000 | 3.3 |
| C2R-RSA16-RK32DB K | 1.260 | 3.154 | 2.154 | 1.000 | 1.000 | 6.000 | 1.024 | 1.000 | 4.1 |
| C2R-RSA16-RL16DB L | 0.630 | 2.509 | 1.509 | 1.000 | 1.000 | 6.000 | 1.033 | 1.000 | 4.8 |
| C2R-RSA16-RL25DB L | 1.000 | 2.879 | 1.879 | 1.000 | 1.000 | 6.000 | 1.033 | 1.000 | 4.8 |
| C2R-RSA20-LF10DB F | 0.400 | 2.394 | 1.144 | 1.250 | 1.250 | 6.000 | 1.299 | 1.250 | 3.0 |
| C2R-RSA20-LF20DB F | 0.790 | 2.784 | 1.534 | 1.250 | 1.250 | 6.000 | 1.299 | 1.250 | 3.3 |
| C2R-RSA20-LG10DB G | 0.400 | 2.453 | 1.203 | 1.250 | 1.250 | 6.000 | 1.299 | 1.250 | 3.0 |
| C2R-RSA20-LG20DB G | 0.790 | 2.843 | 1.593 | 1.250 | 1.250 | 6.000 | 1.299 | 1.250 | 3.3 |
| C2R-RSA20-LH13DB H | 0.512 | 2.656 | 1.406 | 1.250 | 1.250 | 6.000 | 1.299 | 1.250 | 3.3 |
| C2R-RSA20-LH25DB H | 0.980 | 3.124 | 1.874 | 1.250 | 1.250 | 6.000 | 1.299 | 1.250 | 4.1 |
R = Right hand, L = Left hand
