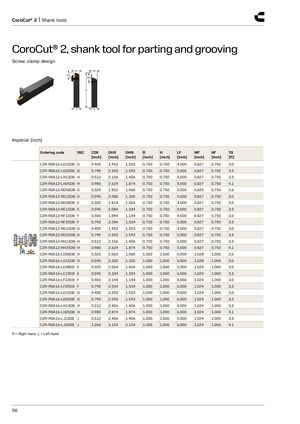

CoroCut® 2, shank tool for parting and grooving
Screw clamp design
HF WF CDX OHX
LF
H B
Imperial (inch)
| Ordering code | SSC | CDX [inch] | OHX [inch] | OHN [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] | TQ [ft] |
| C2R-RSA12-LG10DB | G | 0.400 | 1.953 | 1.203 | 0.750 | 0.750 | 4.500 | 0.827 | 0.750 | 3.0 |
| C2R-RSA12-LG20DB | G | 0.790 | 2.343 | 1.593 | 0.750 | 0.750 | 5.000 | 0.827 | 0.750 | 3.3 |
| C2R-RSA12-LH13DB | H | 0.512 | 2.156 | 1.406 | 0.750 | 0.750 | 5.000 | 0.827 | 0.750 | 3.3 |
| C2R-RSA12-LH25DB | H | 0.980 | 2.624 | 1.874 | 0.750 | 0.750 | 5.000 | 0.827 | 0.750 | 4.1 |
| C2R-RSA12-RD08DB | D | 0.320 | 1.810 | 1.060 | 0.750 | 0.750 | 5.000 | 0.825 | 0.750 | 2.6 |
| C2R-RSA12-RD15DB | D | 0.590 | 2.080 | 1.330 | 0.750 | 0.750 | 5.000 | 0.827 | 0.750 | 3.0 |
| C2R-RSA12-RE08DB | E | 0.320 | 1.814 | 1.064 | 0.750 | 0.750 | 4.500 | 0.827 | 0.750 | 3.0 |
| C2R-RSA12-RE15DB | E | 0.590 | 2.084 | 1.334 | 0.750 | 0.750 | 5.000 | 0.827 | 0.750 | 3.3 |
| C2R-RSA12-RF10DB | F | 0.400 | 1.894 | 1.144 | 0.750 | 0.750 | 4.500 | 0.827 | 0.750 | 3.0 |
| C2R-RSA12-RF20DB | F | 0.790 | 2.284 | 1.534 | 0.750 | 0.750 | 5.000 | 0.827 | 0.750 | 3.3 |
| C2R-RSA12-RG10DB | G | 0.400 | 1.953 | 1.203 | 0.750 | 0.750 | 4.500 | 0.827 | 0.750 | 3.0 |
| C2R-RSA12-RG20DB | G | 0.790 | 2.343 | 1.593 | 0.750 | 0.750 | 5.000 | 0.827 | 0.750 | 3.3 |
| C2R-RSA12-RH13DB | H | 0.512 | 2.156 | 1.406 | 0.750 | 0.750 | 5.000 | 0.827 | 0.750 | 3.3 |
| C2R-RSA12-RH25DB | H | 0.980 | 2.624 | 1.874 | 0.750 | 0.750 | 5.000 | 0.827 | 0.750 | 4.1 |
| C2R-RSA16-LD08DB | D | 0.320 | 2.060 | 1.060 | 1.000 | 1.000 | 5.000 | 1.028 | 1.000 | 2.6 |
| C2R-RSA16-LD15DB | D | 0.590 | 2.330 | 1.330 | 1.000 | 1.000 | 6.000 | 1.028 | 1.000 | 3.0 |
| C2R-RSA16-LE08DB | E | 0.320 | 2.064 | 1.064 | 1.000 | 1.000 | 5.000 | 1.024 | 1.000 | 3.0 |
| C2R-RSA16-LE15DB | E | 0.590 | 2.334 | 1.334 | 1.000 | 1.000 | 6.000 | 1.024 | 1.000 | 3.3 |
| C2R-RSA16-LF10DB | F | 0.400 | 2.144 | 1.144 | 1.000 | 1.000 | 5.000 | 1.024 | 1.000 | 3.0 |
| C2R-RSA16-LF20DB | F | 0.790 | 2.534 | 1.534 | 1.000 | 1.000 | 6.000 | 1.024 | 1.000 | 3.3 |
| C2R-RSA16-LG10DB | G | 0.400 | 2.203 | 1.203 | 1.000 | 1.000 | 5.000 | 1.024 | 1.000 | 3.0 |
| C2R-RSA16-LG20DB | G | 0.790 | 2.593 | 1.593 | 1.000 | 1.000 | 6.000 | 1.024 | 1.000 | 3.3 |
| C2R-RSA16-LH13DB | H | 0.512 | 2.406 | 1.406 | 1.000 | 1.000 | 5.000 | 1.024 | 1.000 | 3.3 |
| C2R-RSA16-LH25DB | H | 0.980 | 2.874 | 1.874 | 1.000 | 1.000 | 6.000 | 1.024 | 1.000 | 4.1 |
| C2R-RSA16-LJ13DB | J | 0.512 | 2.406 | 1.406 | 1.000 | 1.000 | 5.000 | 1.024 | 1.000 | 3.3 |
| C2R-RSA16-LJ32DB | J | 1.260 | 3.154 | 2.154 | 1.000 | 1.000 | 6.000 | 1.024 | 1.000 | 4.1 |
R = Right hand, L = Left hand
