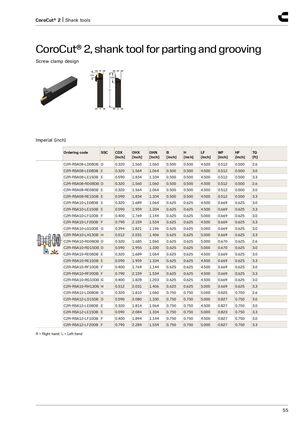

CoroCut® 2, shank tool for parting and grooving
Screw clamp design
HF WF CDX OHX
LF
H B
Imperial (inch)
| Ordering code | SSC | CDX [inch] | OHX [inch] | OHN [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] | TQ [ft] |
| C2R-RSA08-LD08DB | D | 0.320 | 1.560 | 1.060 | 0.500 | 0.500 | 4.500 | 0.512 | 0.500 | 2.6 |
| C2R-RSA08-LE08DB | E | 0.320 | 1.564 | 1.064 | 0.500 | 0.500 | 4.500 | 0.512 | 0.500 | 3.0 |
| C2R-RSA08-LE15DB | E | 0.590 | 1.834 | 1.334 | 0.500 | 0.500 | 4.500 | 0.512 | 0.500 | 3.3 |
| C2R-RSA08-RD08DB | D | 0.320 | 1.560 | 1.060 | 0.500 | 0.500 | 4.500 | 0.512 | 0.500 | 2.6 |
| C2R-RSA08-RE08DB | E | 0.320 | 1.564 | 1.064 | 0.500 | 0.500 | 4.500 | 0.512 | 0.500 | 3.0 |
| C2R-RSA08-RE15DB | E | 0.590 | 1.834 | 1.334 | 0.500 | 0.500 | 4.500 | 0.512 | 0.500 | 3.3 |
| C2R-RSA10-LE08DB | E | 0.320 | 1.689 | 1.064 | 0.625 | 0.625 | 4.500 | 0.669 | 0.625 | 3.0 |
| C2R-RSA10-LE15DB | E | 0.590 | 1.959 | 1.334 | 0.625 | 0.625 | 4.500 | 0.669 | 0.625 | 3.3 |
| C2R-RSA10-LF10DB | F | 0.400 | 1.769 | 1.144 | 0.625 | 0.625 | 5.000 | 0.669 | 0.625 | 3.0 |
| C2R-RSA10-LF20DB | F | 0.790 | 2.159 | 1.534 | 0.625 | 0.625 | 4.500 | 0.669 | 0.625 | 3.3 |
| C2R-RSA10-LG10DB | G | 0.394 | 1.821 | 1.196 | 0.625 | 0.625 | 5.000 | 0.669 | 0.625 | 3.0 |
| C2R-RSA10-LH13DB | H | 0.512 | 2.031 | 1.406 | 0.625 | 0.625 | 5.000 | 0.669 | 0.625 | 3.3 |
| C2R-RSA10-RD08DB | D | 0.320 | 1.685 | 1.060 | 0.625 | 0.625 | 5.000 | 0.670 | 0.625 | 2.6 |
| C2R-RSA10-RD15DB | D | 0.590 | 1.955 | 1.330 | 0.625 | 0.625 | 5.000 | 0.670 | 0.625 | 3.0 |
| C2R-RSA10-RE08DB | E | 0.320 | 1.689 | 1.064 | 0.625 | 0.625 | 4.500 | 0.669 | 0.625 | 3.0 |
| C2R-RSA10-RE15DB | E | 0.590 | 1.959 | 1.334 | 0.625 | 0.625 | 4.500 | 0.669 | 0.625 | 3.3 |
| C2R-RSA10-RF10DB | F | 0.400 | 1.769 | 1.144 | 0.625 | 0.625 | 4.500 | 0.669 | 0.625 | 3.0 |
| C2R-RSA10-RF20DB | F | 0.790 | 2.159 | 1.534 | 0.625 | 0.625 | 4.500 | 0.669 | 0.625 | 3.3 |
| C2R-RSA10-RG10DB | G | 0.400 | 1.828 | 1.203 | 0.625 | 0.625 | 4.500 | 0.669 | 0.625 | 3.0 |
| C2R-RSA10-RH13DB | H | 0.512 | 2.031 | 1.406 | 0.625 | 0.625 | 5.000 | 0.669 | 0.625 | 3.3 |
| C2R-RSA12-LD08DB | D | 0.320 | 1.810 | 1.060 | 0.750 | 0.750 | 5.000 | 0.825 | 0.750 | 2.6 |
| C2R-RSA12-LD15DB | D | 0.590 | 2.080 | 1.330 | 0.750 | 0.750 | 5.000 | 0.827 | 0.750 | 3.0 |
| C2R-RSA12-LE08DB | E | 0.320 | 1.814 | 1.064 | 0.750 | 0.750 | 4.500 | 0.827 | 0.750 | 3.0 |
| C2R-RSA12-LE15DB | E | 0.590 | 2.084 | 1.334 | 0.750 | 0.750 | 5.000 | 0.823 | 0.750 | 3.3 |
| C2R-RSA12-LF10DB | F | 0.400 | 1.894 | 1.144 | 0.750 | 0.750 | 4.500 | 0.827 | 0.750 | 3.0 |
| C2R-RSA12-LF20DB | F | 0.790 | 2.284 | 1.534 | 0.750 | 0.750 | 5.000 | 0.827 | 0.750 | 3.3 |
R = Right hand, L = Left hand
