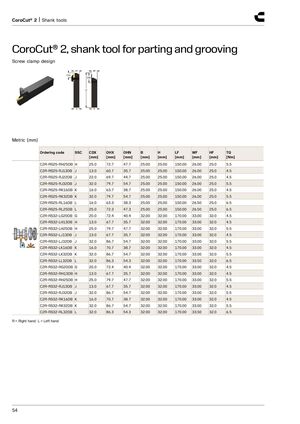

CoroCut® 2, shank tool for parting and grooving
Screw clamp design
HF WF CDX OHX
LF
H B
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | TQ [Nm] |
| C2R-RS25-RH25DB | H | 25.0 | 72.7 | 47.7 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 5.5 |
| C2R-RS25-RJ13DB | J | 13.0 | 60.7 | 35.7 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.5 |
| C2R-RS25-RJ22DB | J | 22.0 | 69.7 | 44.7 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.5 |
| C2R-RS25-RJ32DB | J | 32.0 | 79.7 | 54.7 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 5.5 |
| C2R-RS25-RK16DB | K | 16.0 | 63.7 | 38.7 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.5 |
| C2R-RS25-RK32DB | K | 32.0 | 79.7 | 54.7 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 5.5 |
| C2R-RS25-RL16DB | L | 16.0 | 63.3 | 38.3 | 25.00 | 25.00 | 150.00 | 26.50 | 25.0 | 6.5 |
| C2R-RS25-RL25DB | L | 25.0 | 72.3 | 47.3 | 25.00 | 25.00 | 150.00 | 26.50 | 25.0 | 6.5 |
| C2R-RS32-LG20DB | G | 20.0 | 72.4 | 40.4 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | 4.5 |
| C2R-RS32-LH13DB | H | 13.0 | 67.7 | 35.7 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | 4.5 |
| C2R-RS32-LH25DB | H | 25.0 | 79.7 | 47.7 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | 5.5 |
| C2R-RS32-LJ13DB | J | 13.0 | 67.7 | 35.7 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | 4.5 |
| C2R-RS32-LJ32DB | J | 32.0 | 86.7 | 54.7 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | 5.5 |
| C2R-RS32-LK16DB | K | 16.0 | 70.7 | 38.7 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | 4.5 |
| C2R-RS32-LK32DB | K | 32.0 | 86.7 | 54.7 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | 5.5 |
| C2R-RS32-LL32DB | L | 32.0 | 86.3 | 54.3 | 32.00 | 32.00 | 170.00 | 33.50 | 32.0 | 6.5 |
| C2R-RS32-RG20DB | G | 20.0 | 72.4 | 40.4 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | 4.5 |
| C2R-RS32-RH13DB | H | 13.0 | 67.7 | 35.7 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | 4.5 |
| C2R-RS32-RH25DB | H | 25.0 | 79.7 | 47.7 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | 5.5 |
| C2R-RS32-RJ13DB | J | 13.0 | 67.7 | 35.7 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | 4.5 |
| C2R-RS32-RJ32DB | J | 32.0 | 86.7 | 54.7 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | 5.5 |
| C2R-RS32-RK16DB | K | 16.0 | 70.7 | 38.7 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | 4.5 |
| C2R-RS32-RK32DB | K | 32.0 | 86.7 | 54.7 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | 5.5 |
| C2R-RS32-RL32DB | L | 32.0 | 86.3 | 54.3 | 32.00 | 32.00 | 170.00 | 33.50 | 32.0 | 6.5 |
R = Right hand, L = Left hand
