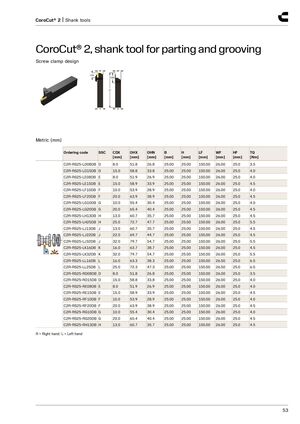

CoroCut® 2, shank tool for parting and grooving
Screw clamp design
HF WF CDX OHX
LF
H B
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | TQ [Nm] |
| C2R-RS25-LD08DB | D | 8.0 | 51.8 | 26.8 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 3.5 |
| C2R-RS25-LD15DB | D | 15.0 | 58.8 | 33.8 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.0 |
| C2R-RS25-LE08DB | E | 8.0 | 51.9 | 26.9 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.0 |
| C2R-RS25-LE15DB | E | 15.0 | 58.9 | 33.9 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.5 |
| C2R-RS25-LF10DB | F | 10.0 | 53.9 | 28.9 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.0 |
| C2R-RS25-LF20DB | F | 20.0 | 63.9 | 38.9 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.5 |
| C2R-RS25-LG10DB | G | 10.0 | 55.4 | 30.4 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.0 |
| C2R-RS25-LG20DB | G | 20.0 | 65.4 | 40.4 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.5 |
| C2R-RS25-LH13DB | H | 13.0 | 60.7 | 35.7 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.5 |
| C2R-RS25-LH25DB | H | 25.0 | 72.7 | 47.7 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 5.5 |
| C2R-RS25-LJ13DB | J | 13.0 | 60.7 | 35.7 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.5 |
| C2R-RS25-LJ22DB | J | 22.0 | 69.7 | 44.7 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.5 |
| C2R-RS25-LJ32DB | J | 32.0 | 79.7 | 54.7 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 5.5 |
| C2R-RS25-LK16DB | K | 16.0 | 63.7 | 38.7 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.5 |
| C2R-RS25-LK32DB | K | 32.0 | 79.7 | 54.7 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 5.5 |
| C2R-RS25-LL16DB | L | 16.0 | 63.3 | 38.3 | 25.00 | 25.00 | 150.00 | 26.50 | 25.0 | 6.5 |
| C2R-RS25-LL25DB | L | 25.0 | 72.3 | 47.3 | 25.00 | 25.00 | 150.00 | 26.50 | 25.0 | 6.5 |
| C2R-RS25-RD08DB | D | 8.0 | 51.8 | 26.8 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 3.5 |
| C2R-RS25-RD15DB | D | 15.0 | 58.8 | 33.8 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.0 |
| C2R-RS25-RE08DB | E | 8.0 | 51.9 | 26.9 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.0 |
| C2R-RS25-RE15DB | E | 15.0 | 58.9 | 33.9 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.5 |
| C2R-RS25-RF10DB | F | 10.0 | 53.9 | 28.9 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.0 |
| C2R-RS25-RF20DB | F | 20.0 | 63.9 | 38.9 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.5 |
| C2R-RS25-RG10DB | G | 10.0 | 55.4 | 30.4 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.0 |
| C2R-RS25-RG20DB | G | 20.0 | 65.4 | 40.4 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.5 |
| C2R-RS25-RH13DB | H | 13.0 | 60.7 | 35.7 | 25.00 | 25.00 | 150.00 | 26.00 | 25.0 | 4.5 |
R = Right hand, L = Left hand
