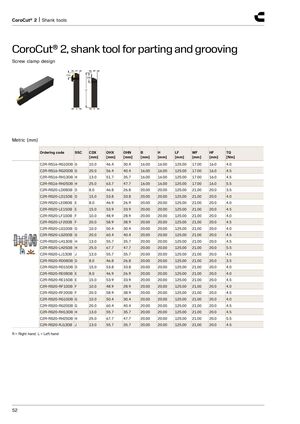

CoroCut® 2, shank tool for parting and grooving
Screw clamp design
HF WF CDX OHX
LF
H B
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | TQ [Nm] |
| C2R-RS16-RG10DB | G | 10.0 | 46.4 | 30.4 | 16.00 | 16.00 | 125.00 | 17.00 | 16.0 | 4.0 |
| C2R-RS16-RG20DB | G | 20.0 | 56.4 | 40.4 | 16.00 | 16.00 | 125.00 | 17.00 | 16.0 | 4.5 |
| C2R-RS16-RH13DB | H | 13.0 | 51.7 | 35.7 | 16.00 | 16.00 | 125.00 | 17.00 | 16.0 | 4.5 |
| C2R-RS16-RH25DB | H | 25.0 | 63.7 | 47.7 | 16.00 | 16.00 | 125.00 | 17.00 | 16.0 | 5.5 |
| C2R-RS20-LD08DB | D | 8.0 | 46.8 | 26.8 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 3.5 |
| C2R-RS20-LD15DB | D | 15.0 | 53.8 | 33.8 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 4.0 |
| C2R-RS20-LE08DB | E | 8.0 | 46.9 | 26.9 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 4.0 |
| C2R-RS20-LE15DB | E | 15.0 | 53.9 | 33.9 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 4.5 |
| C2R-RS20-LF10DB | F | 10.0 | 48.9 | 28.9 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 4.0 |
| C2R-RS20-LF20DB | F | 20.0 | 58.9 | 38.9 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 4.5 |
| C2R-RS20-LG10DB | G | 10.0 | 50.4 | 30.4 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 4.0 |
| C2R-RS20-LG20DB | G | 20.0 | 60.4 | 40.4 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 4.5 |
| C2R-RS20-LH13DB | H | 13.0 | 55.7 | 35.7 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 4.5 |
| C2R-RS20-LH25DB | H | 25.0 | 67.7 | 47.7 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 5.5 |
| C2R-RS20-LJ13DB | J | 13.0 | 55.7 | 35.7 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 4.5 |
| C2R-RS20-RD08DB | D | 8.0 | 46.8 | 26.8 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 3.5 |
| C2R-RS20-RD15DB | D | 15.0 | 53.8 | 33.8 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 4.0 |
| C2R-RS20-RE08DB | E | 8.0 | 46.9 | 26.9 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 4.0 |
| C2R-RS20-RE15DB | E | 15.0 | 53.9 | 33.9 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 4.5 |
| C2R-RS20-RF10DB | F | 10.0 | 48.9 | 28.9 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 4.0 |
| C2R-RS20-RF20DB | F | 20.0 | 58.9 | 38.9 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 4.5 |
| C2R-RS20-RG10DB | G | 10.0 | 50.4 | 30.4 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 4.0 |
| C2R-RS20-RG20DB | G | 20.0 | 60.4 | 40.4 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 4.5 |
| C2R-RS20-RH13DB | H | 13.0 | 55.7 | 35.7 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 4.5 |
| C2R-RS20-RH25DB | H | 25.0 | 67.7 | 47.7 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 5.5 |
| C2R-RS20-RJ13DB | J | 13.0 | 55.7 | 35.7 | 20.00 | 20.00 | 125.00 | 21.00 | 20.0 | 4.5 |
R = Right hand, L = Left hand
