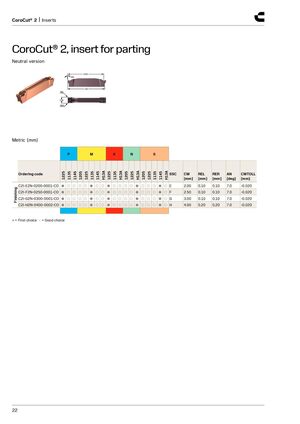

CoroCut® 2, insert for parting
Neutral version
CDX AN
LIG REL
CW RER
Metric (mm)
| P | M | K | N | S | ||||||||||||||
| Ordering code | 1225 1135 1145 1205 1225 | 1135 1145 | H13A 1225 | 1135 | H13A | 1205 | 1225 | H13A | 1205 | 1225 | 1135 | 1145 H13A SSC | CW [mm] | REL [mm] | RER [mm] | AN [deg] | CWTOLL [mm] | |
| g C2I-E2N-0200-0001-CO | ●○○○○ | ●○ | ○● | ○ | ○ | ○ | ○ | ● | ○ | ○ | ○ | ●○E | 2.00 | 0.10 | 0.10 | 7.0 | -0.020 | |
| shin C2I-F2N-0250-0001-CO | ●○○○○ | ●○ | ○● | ○ | ○ | ○ | ○ | ● | ○ | ○ | ○ | ●○F | 2.50 | 0.10 | 0.10 | 7.0 | -0.020 | |
| ini C2I-G2N-0300-0001-CO | ●○○○○ | ●○ | ○● | ○ | ○ | ○ | ○ | ● | ○ | ○ | ○ | ●○G | 3.00 | 0.10 | 0.10 | 7.0 | -0.020 | |
| F C2I-H2N-0400-0002-CO | ●○○○○ | ●○ | ○● | ○ | ○ | ○ | ○ | ● | ○ | ○ | ○ | ●○H | 4.00 | 0.20 | 0.20 | 7.0 | -0.020 |
- = First choice ○ = Good choice
