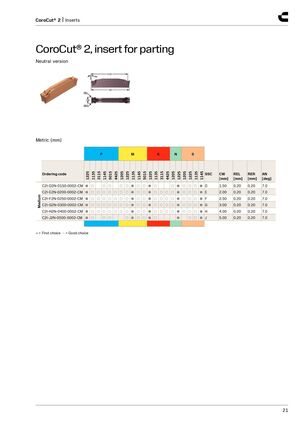

CoroCut® 2, insert for parting
Neutral version
CDX AN
LIG REL CW RER
Metric (mm)
| P | M | K | N | S | ||||||||||||||||||||
| Ordering code | 1225 | 1135 | 3115 1145 | 5015 4425 | 1205 | 1225 | 1135 1145 | 5015 | 1225 | 1135 | 3115 | 4425 | 1205 | 1225 | 1205 | 1225 | 1135 | 1145 SSC | CW [mm] | REL [mm] | RER [mm] | AN [deg] | ||
| C2I-D2N-0150-0002-CM | ● | ○ | ○ | ○ | ○ | ○ | ●○ | ○ | ●○ | ○ | ● | ○ | ○ | ○ | ●D | 1.50 | 0.20 | 0.20 | 7.0 | |||||
| C2I-E2N-0200-0002-CM | ● | ○ | ○○ | ○○ | ○ | ○ | ●○ | ○ | ●○ | ○ | ○ | ○ | ● | ○ | ○ | ○ | ●E | 2.00 | 0.20 | 0.20 | 7.0 | |||
| dium C2I-F2N-0250-0002-CM | ● | ○ | ○○ | ○○ | ○ | ○ | ●○ | ○ | ●○ | ○ | ○ | ○ | ● | ○ | ○ | ○ | ●F | 2.50 | 0.20 | 0.20 | 7.0 | |||
| Me C2I-G2N-0300-0002-CM | ● | ○ | ○○ | ○○ | ○ | ○ | ●○ | ○ | ●○ | ○ | ○ | ○ | ● | ○ | ○ | ○ | ●G | 3.00 | 0.20 | 0.20 | 7.0 | |||
| C2I-H2N-0400-0002-CM | ● | ○ | ○○ | ○○ | ○ | ○ | ●○ | ○ | ●○ | ○ | ○ | ○ | ● | ○ | ○ | ○ | ●H | 4.00 | 0.20 | 0.20 | 7.0 | |||
| C2I-J2N-0500-0002-CM | ● | ○ | ○ | ○ | ○ | ●○ | ○ | ●○ | ● | ○ | ○ | ●J | 5.00 | 0.20 | 0.20 | 7.0 |
- = First choice ○ = Good choice
