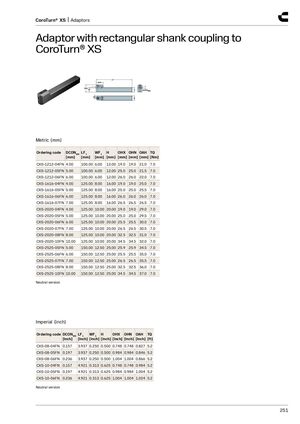

CoroTurn® XS
Metric (mm)
| Ordering code | DCONWS [mm] | LF1 [mm] | WF1 [mm] | H [mm] | OHX [mm] | OHN [mm] | OAH [mm] | TQ [Nm] |
| CXS-1212-04FN | 4.00 | 100.00 | 6.00 | 12.00 | 19.0 | 19.0 | 21.0 | 7.0 |
| CXS-1212-05FN | 5.00 | 100.00 | 6.00 | 12.00 | 25.0 | 25.0 | 21.5 | 7.0 |
| CXS-1212-06FN | 6.00 | 100.00 | 6.00 | 12.00 | 26.0 | 26.0 | 22.0 | 7.0 |
| CXS-1616-04FN | 4.00 | 125.00 | 8.00 | 16.00 | 19.0 | 19.0 | 25.0 | 7.0 |
| CXS-1616-05FN | 5.00 | 125.00 | 8.00 | 16.00 | 25.0 | 25.0 | 25.5 | 7.0 |
| CXS-1616-06FN | 6.00 | 125.00 | 8.00 | 16.00 | 26.0 | 26.0 | 26.0 | 7.0 |
| CXS-1616-07FN | 7.00 | 125.00 | 8.00 | 16.00 | 26.5 | 26.5 | 26.5 | 7.0 |
| CXS-2020-04FN | 4.00 | 125.00 | 10.00 | 20.00 | 19.0 | 19.0 | 29.0 | 7.0 |
| CXS-2020-05FN | 5.00 | 125.00 | 10.00 | 20.00 | 25.0 | 25.0 | 29.5 | 7.0 |
| CXS-2020-06FN | 6.00 | 125.00 | 10.00 | 20.00 | 25.5 | 25.5 | 30.0 | 7.0 |
| CXS-2020-07FN | 7.00 | 125.00 | 10.00 | 20.00 | 26.5 | 26.5 | 30.5 | 7.0 |
| CXS-2020-08FN | 8.00 | 125.00 | 10.00 | 20.00 | 32.5 | 32.5 | 31.0 | 7.0 |
| CXS-2020-10FN | 10.00 | 125.00 | 10.00 | 20.00 | 34.5 | 34.5 | 32.0 | 7.0 |
| CXS-2525-05FN | 5.00 | 150.00 | 12.50 | 25.00 | 25.9 | 25.9 | 34.5 | 7.0 |
| CXS-2525-06FN | 6.00 | 150.00 | 12.50 | 25.00 | 25.5 | 25.5 | 35.0 | 7.0 |
| CXS-2525-07FN | 7.00 | 150.00 | 12.50 | 25.00 | 26.5 | 26.5 | 35.5 | 7.0 |
| CXS-2525-08FN | 8.00 | 150.00 | 12.50 | 25.00 | 32.5 | 32.5 | 36.0 | 7.0 |
| CXS-2525-10FN | 10.00 | 150.00 | 12.50 | 25.00 | 34.5 | 34.5 | 37.0 | 7.0 |
Neutral version
Imperial (inch)
| Ordering code | DCONWS [inch] | LF1 [inch] | WF1 [inch] | H [inch] | OHX [inch] | OHN [inch] | OAH [inch] | TQ [ft] |
| CXS-08-04FN | 0.157 | 3.937 | 0.250 | 0.500 | 0.748 | 0.748 | 0.827 | 5.2 |
| CXS-08-05FN | 0.197 | 3.937 | 0.250 | 0.500 | 0.984 | 0.984 | 0.846 | 5.2 |
| CXS-08-06FN | 0.236 | 3.937 | 0.250 | 0.500 | 1.004 | 1.004 | 0.866 | 5.2 |
| CXS-10-04FN | 0.157 | 4.921 | 0.313 | 0.625 | 0.748 | 0.748 | 0.984 | 5.2 |
| CXS-10-05FN | 0.197 | 4.921 | 0.313 | 0.625 | 0.984 | 0.984 | 1.004 | 5.2 |
| CXS-10-06FN | 0.236 | 4.921 | 0.313 | 0.625 | 1.004 | 1.004 | 1.024 | 5.2 |
Neutral version
